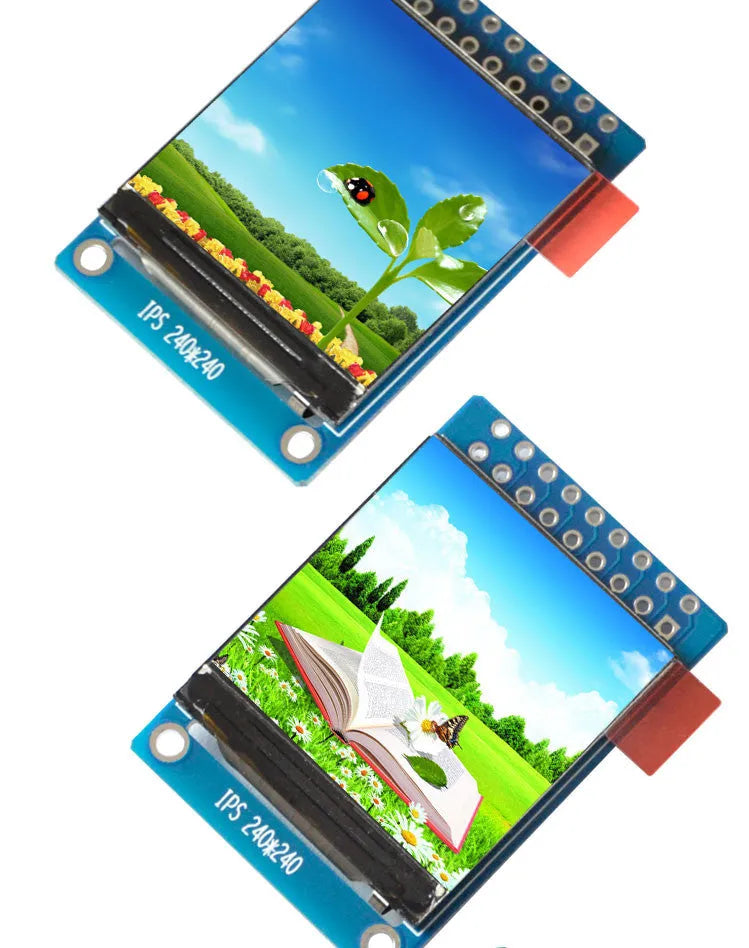

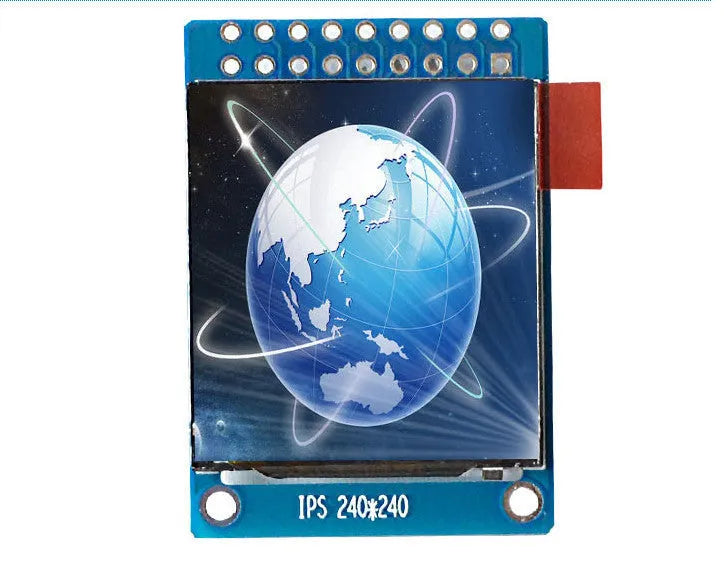

1.3 Inch IPS LCD Full Colour Display Module with 240x240 Square Resolution and ST7789 Control Chip

This 1.3-inch IPS LCD display module delivers a high-quality visual interface for electronics enthusiasts and developers working with microcontrollers like Arduino and Raspberry Pi. Featuring a square 240x240 resolution IPS panel, it provides superior colour reproduction and wider viewing angles compared to standard TFT LCD technology. The display's adjustable orientation allows flexible mounting in various project configurations, while its compact physical dimensions make it suitable for space-constrained applications. With support for both 8-bit parallel port and 4-wire SPI interfaces, this versatile module offers compatibility with a wide range of development boards and electronic systems.

Features and Construction

Built around a quality IPS panel and ST7789 control chip, this display module combines visual performance with electronic compatibility for DIY projects and prototyping applications.

Material and Build

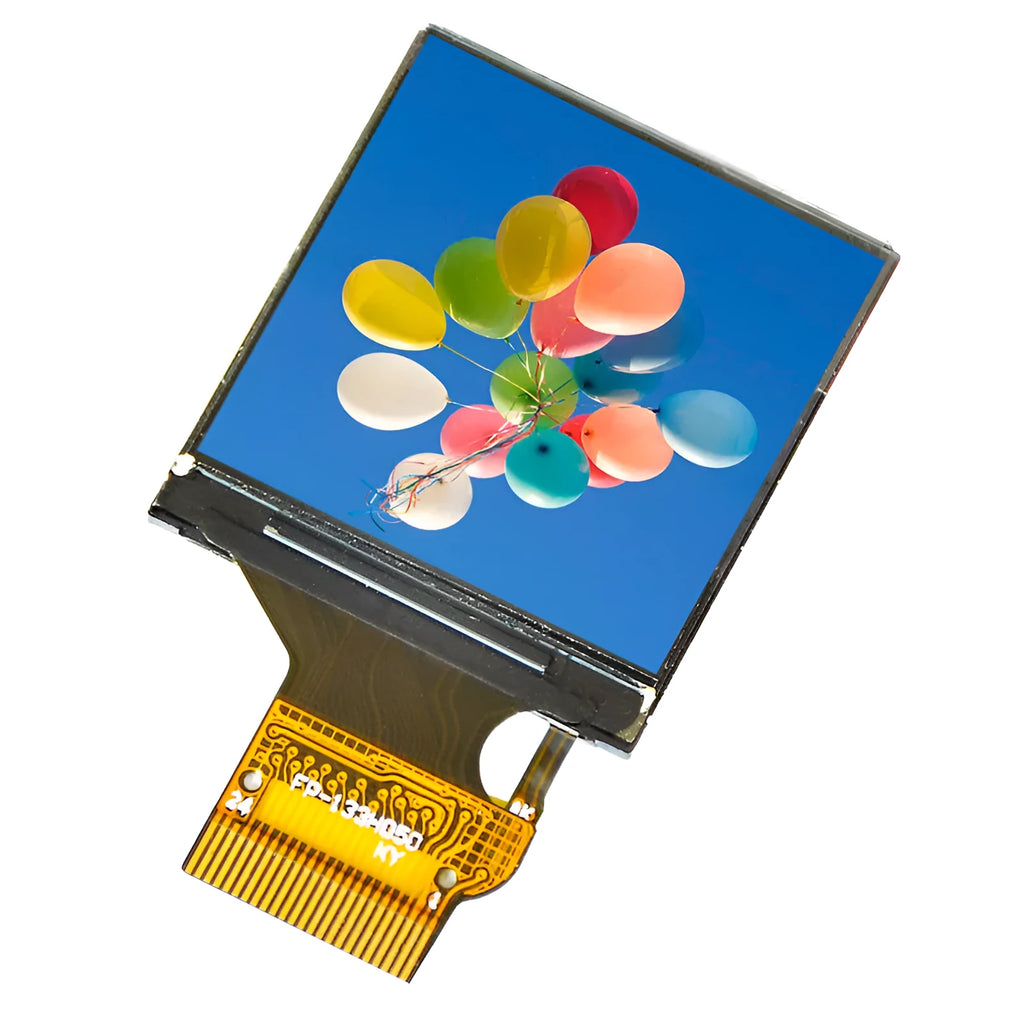

The module centres around a high-definition IPS colour screen that delivers more vivid colours than ordinary TFT LCD displays. This IPS technology provides superior colour accuracy and wider viewing angles, making the display suitable for applications where visual quality matters. The ST7789 control chip manages display operations efficiently, supporting the 240x240 square resolution that allows flexible orientation adjustment in your projects. The 18-pin connection interface provides the necessary electrical connections, though pins require separate handling as they are not supplied by default.

Size and Practical Fit

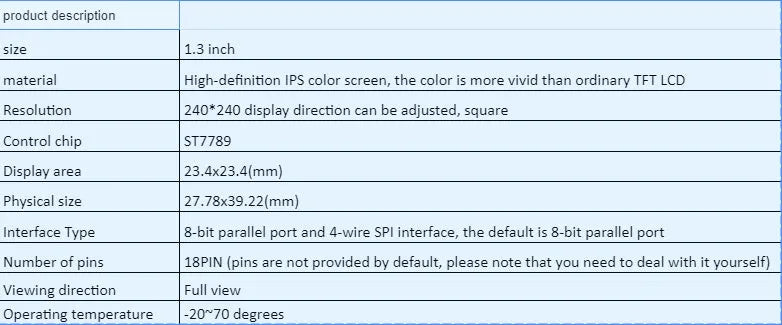

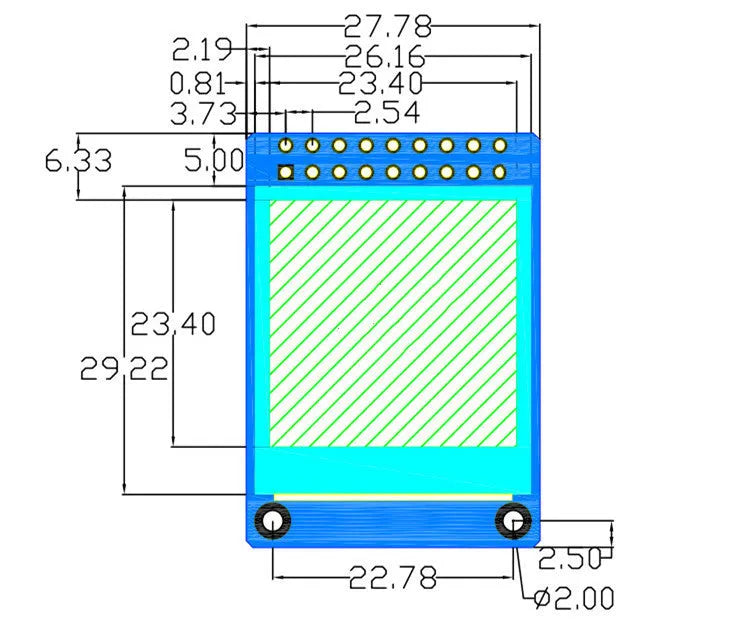

With a display area of 23.4 x 23.4 mm and overall physical dimensions of 27.78 x 39.22 mm, this compact module fits easily into space-constrained electronics projects. The square resolution format allows for flexible orientation without compromising the visible area, making it suitable for both portrait and landscape mounting configurations. The 1.3-inch diagonal measurement provides sufficient screen real estate for displaying sensor readings, user interfaces, or graphical elements while maintaining a footprint suitable for embedded applications and portable devices.

Uses and Placement

This display module serves electronics projects requiring visual feedback, data presentation, or user interaction through a clear, colour interface.

Event or Professional Use

For professional applications, the display's operating temperature range of -20 to 70 degrees Celsius makes it suitable for industrial monitoring systems, environmental sensors, or outdoor installations where temperature variations occur. The IPS technology ensures consistent colour representation across different viewing angles, valuable for public information displays or kiosk interfaces. The dual-interface support allows integration into custom control panels, measurement equipment, or prototype devices requiring reliable visual output across varying environmental conditions.

Everyday Home Use

DIY enthusiasts can incorporate this display into home automation systems, weather stations, or custom clock projects that benefit from colour graphical feedback. The 240x240 square resolution works well for displaying sensor readings, simple animations, or menu interfaces in Arduino and Raspberry Pi projects. Hobbyists can use the adjustable orientation to mount the display in custom enclosures, 3D-printed cases, or retro-fit existing devices with a modern visual interface. The module's compatibility with common microcontrollers makes it accessible for electronics beginners and experienced makers alike.

Benefits and Buying Value

This display module offers practical advantages for electronics projects through its combination of visual quality, interface flexibility, and reliable operation.

Reuse and Low Maintenance

The robust construction and specified operating temperature range support repeated use across different projects and environments. The IPS panel technology maintains colour accuracy over time without requiring complex calibration procedures. With proper handling of the connection interface and operation within specified parameters, the display provides consistent performance for prototyping, testing, and final implementations in electronic systems.

Why Choose This Product

This 1.3-inch IPS LCD display module provides a balance of visual quality and electronic compatibility at a compact size suitable for diverse projects. The square 240x240 resolution with adjustable orientation offers mounting flexibility, while the dual-interface support ensures compatibility with various microcontroller platforms. The IPS technology delivers better colour reproduction than standard TFT displays, enhancing the visual appeal of your electronics projects. For developers needing a reliable colour display interface with straightforward integration into Arduino, Raspberry Pi, or custom electronic systems, this module offers a practical solution.
