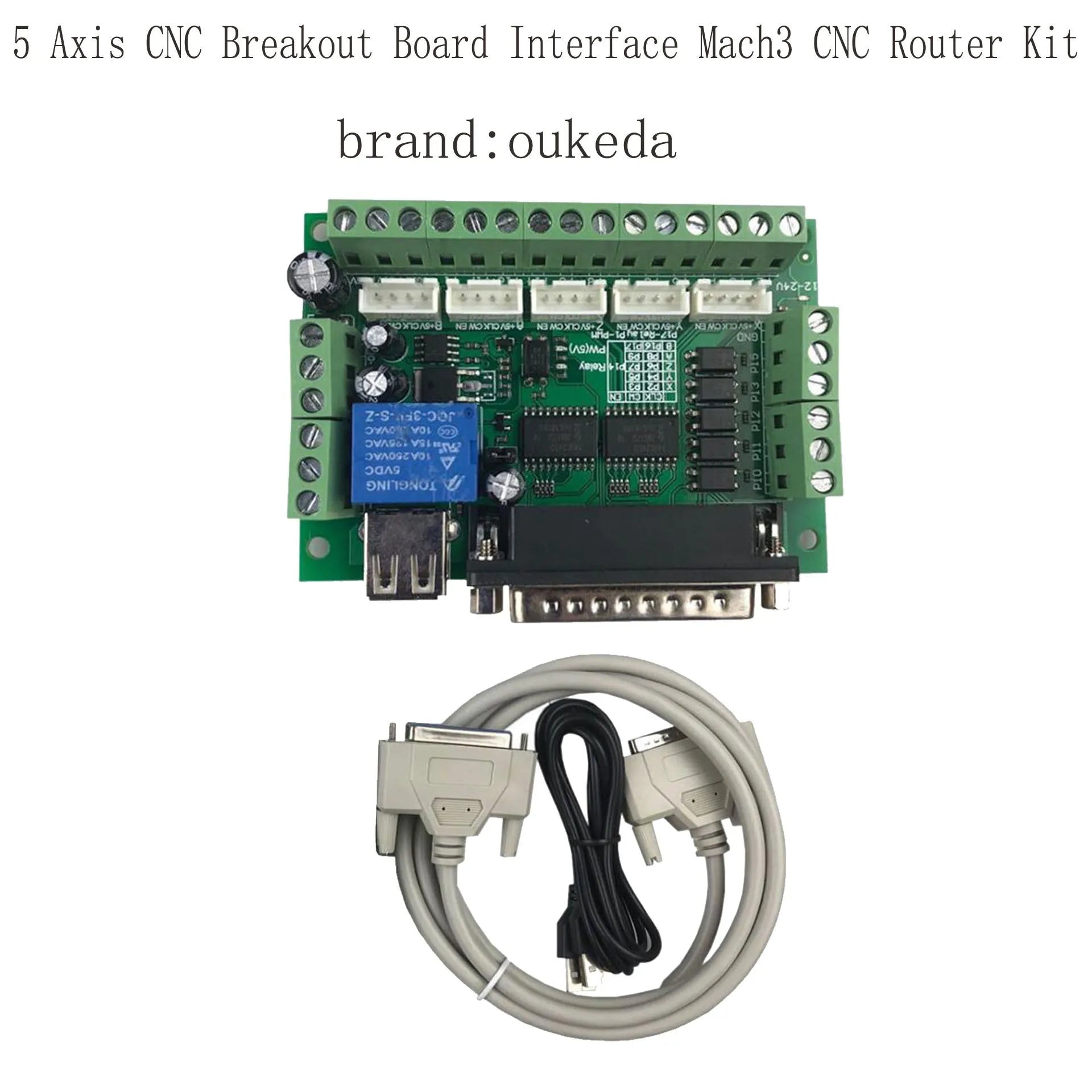

5 Axis CNC Breakout Board for Mach3 Router Kit Opto-Isolated Interface

This 5 axis CNC breakout board provides a cost-effective and high-performance solution for connecting your computer to a CNC router or milling machine. Designed to work seamlessly with Mach3 and Linux CNC (EMC2) parallel-control software, it allows you to control up to five stepper motor driver axes with confidence. The board features opto-isolated signals and a separated USB power supply to protect your computer from electrical damage, making it a safe and reliable choice for CNC hobbyists and professionals alike.

Features and Construction

Built for practicality and safety, this breakout board integrates essential control interfaces in a compact design. The opto-isolation and wide input voltage range ensure stable operation across different setups.

Material and Build

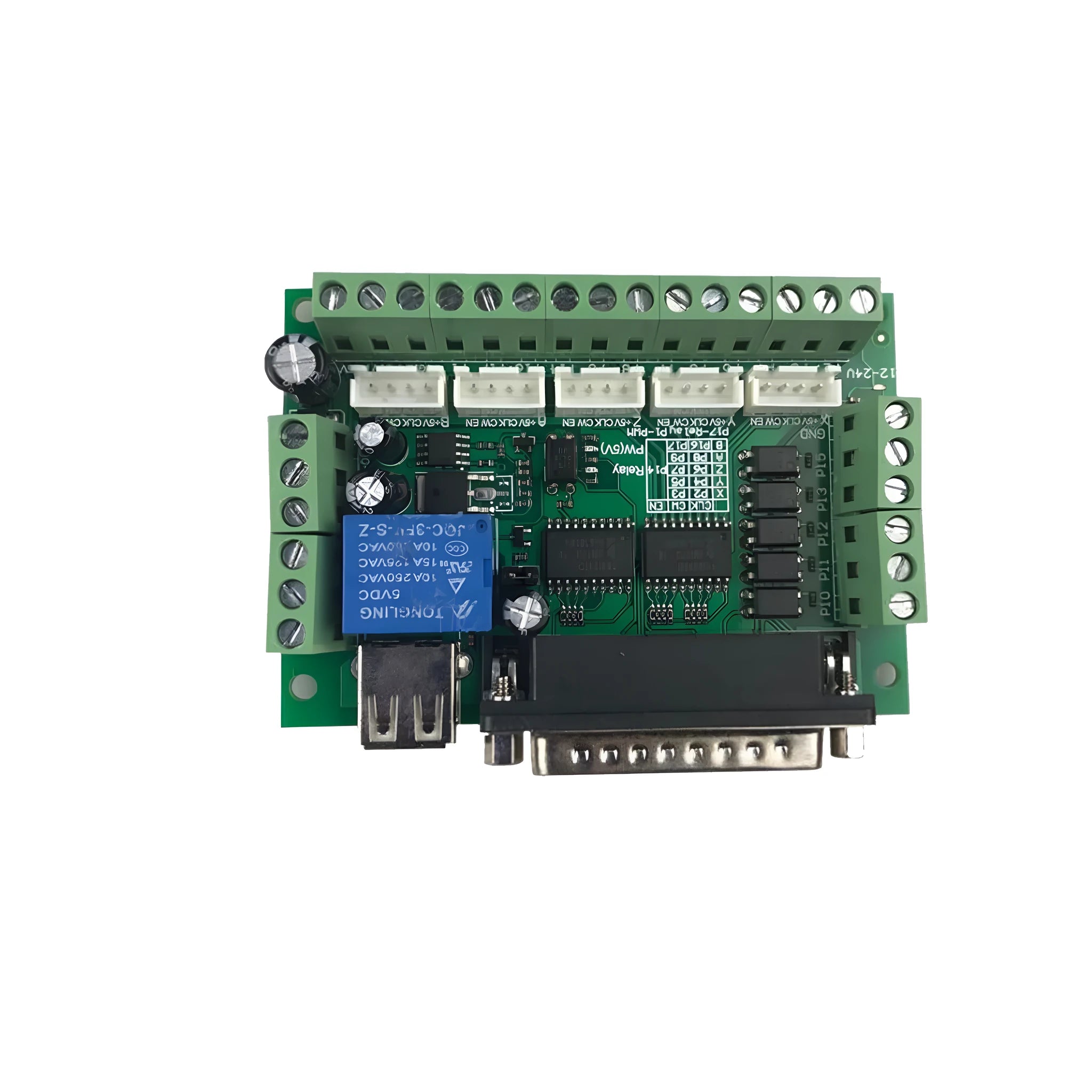

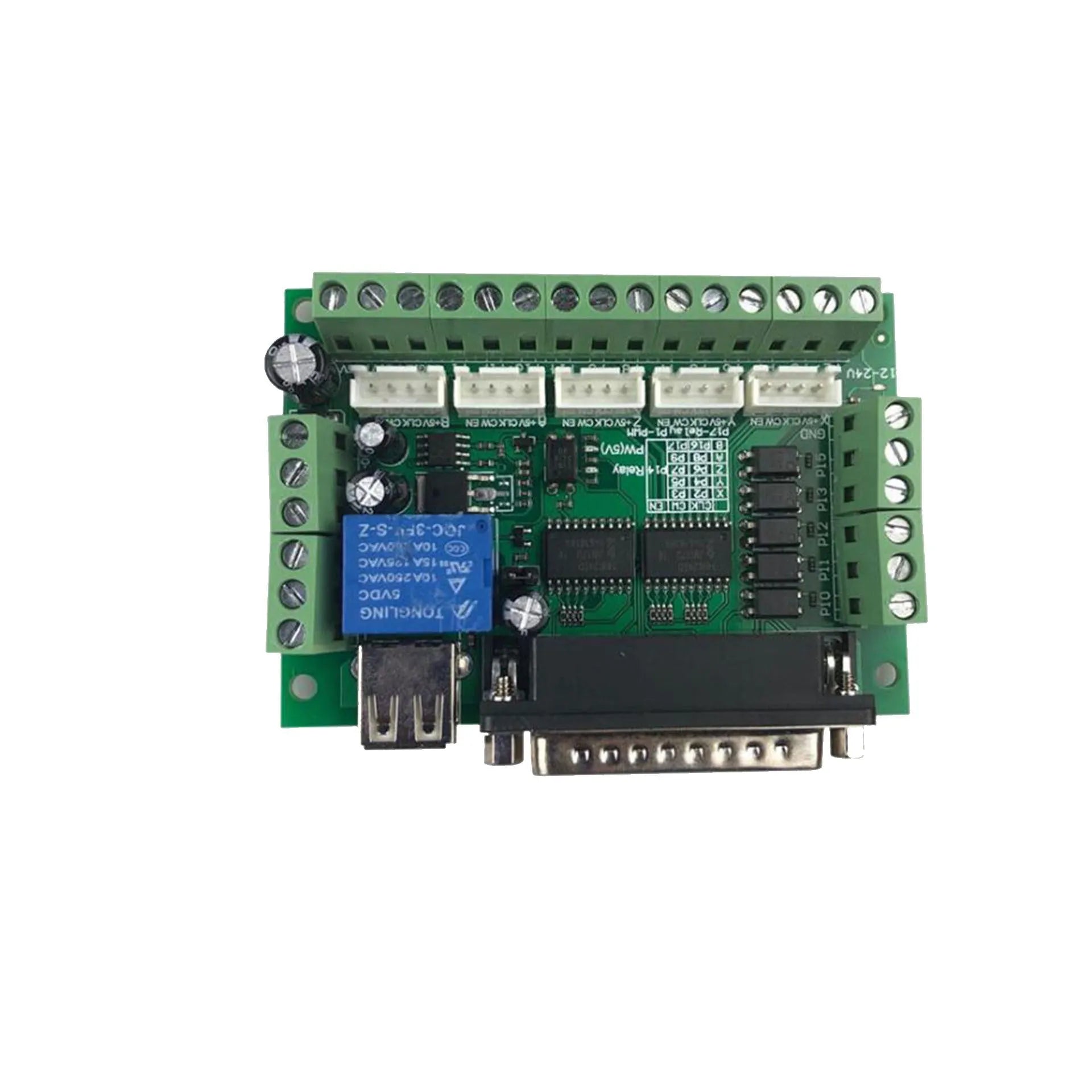

The board is constructed using a standard PCB with quality electronic components. All signal lines are opto-isolated to provide galvanic separation between the computer and the CNC machine, reducing the risk of damage from electrical noise or surges. The board also includes an anti-reverse protection circuit on the power input.

Size and Practical Fit

Measuring approximately 120mm x 80mm, the board is compact enough to fit into most CNC controller enclosures. It can be powered via USB for the control logic and a separate 12-24V DC supply for the peripheral circuits, giving flexibility in system integration.

Uses and Placement

This breakout board is designed for CNC routing, milling, engraving, and similar multi-axis machining applications. It interfaces directly with standard parallel port CNC software.

Event or Professional Use

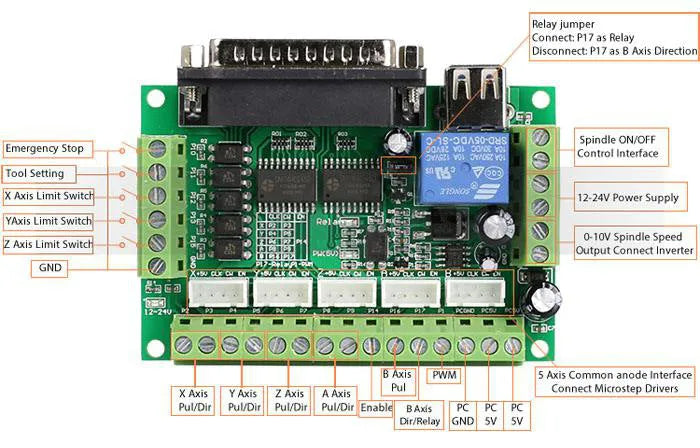

In a workshop or production environment, the board's five-axis support allows control of complex machines such as 5-axis CNC routers. The relay output can drive a spindle motor or coolant pump, while the analog 0-10V output adjusts inverter-driven spindle speed for different materials and cutting speeds.

Everyday Home Use

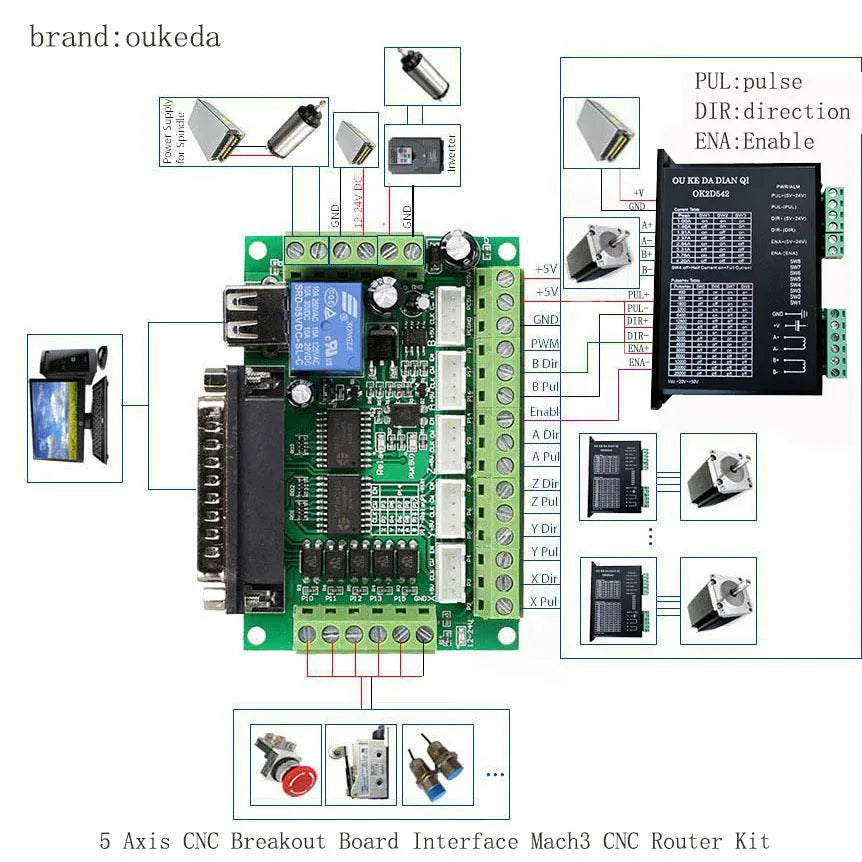

For hobbyists and makers, the board simplifies the connection between a desktop PC running Mach3 and a DIY CNC router. The five input interfaces can be assigned as limit switches or an emergency stop, adding safety to home machining projects.

Benefits and Buying Value

This breakout board offers essential protection and expandability at a reasonable cost, making it a practical upgrade or core component for any CNC controller.

Reuse and Low Maintenance

Once installed and configured, the board requires minimal maintenance. The solid-state opto-isolators have no moving parts and provide long-term reliability. The board is compatible with all common 2-phase microstep drivers, so it can be reused across different machine builds.

Why Choose This Product

With support for up to five axes, opto-isolated inputs, and a 0-10V spindle speed output, this board delivers the key features needed for a safe and versatile CNC controller interface. Its compatibility with Mach3 and Linux CNC makes it a straightforward choice for anyone upgrading or building a multi-axis CNC system.
