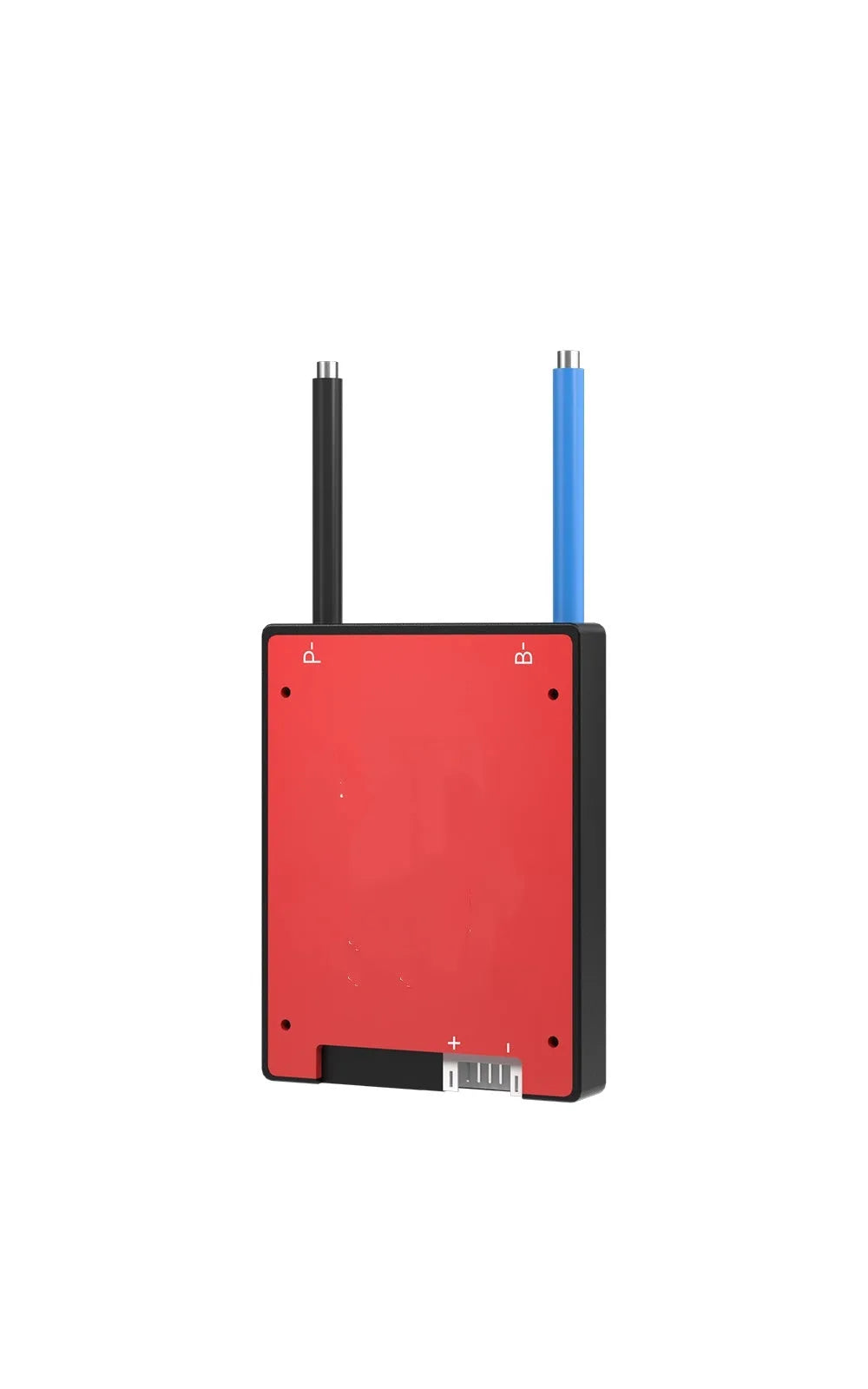

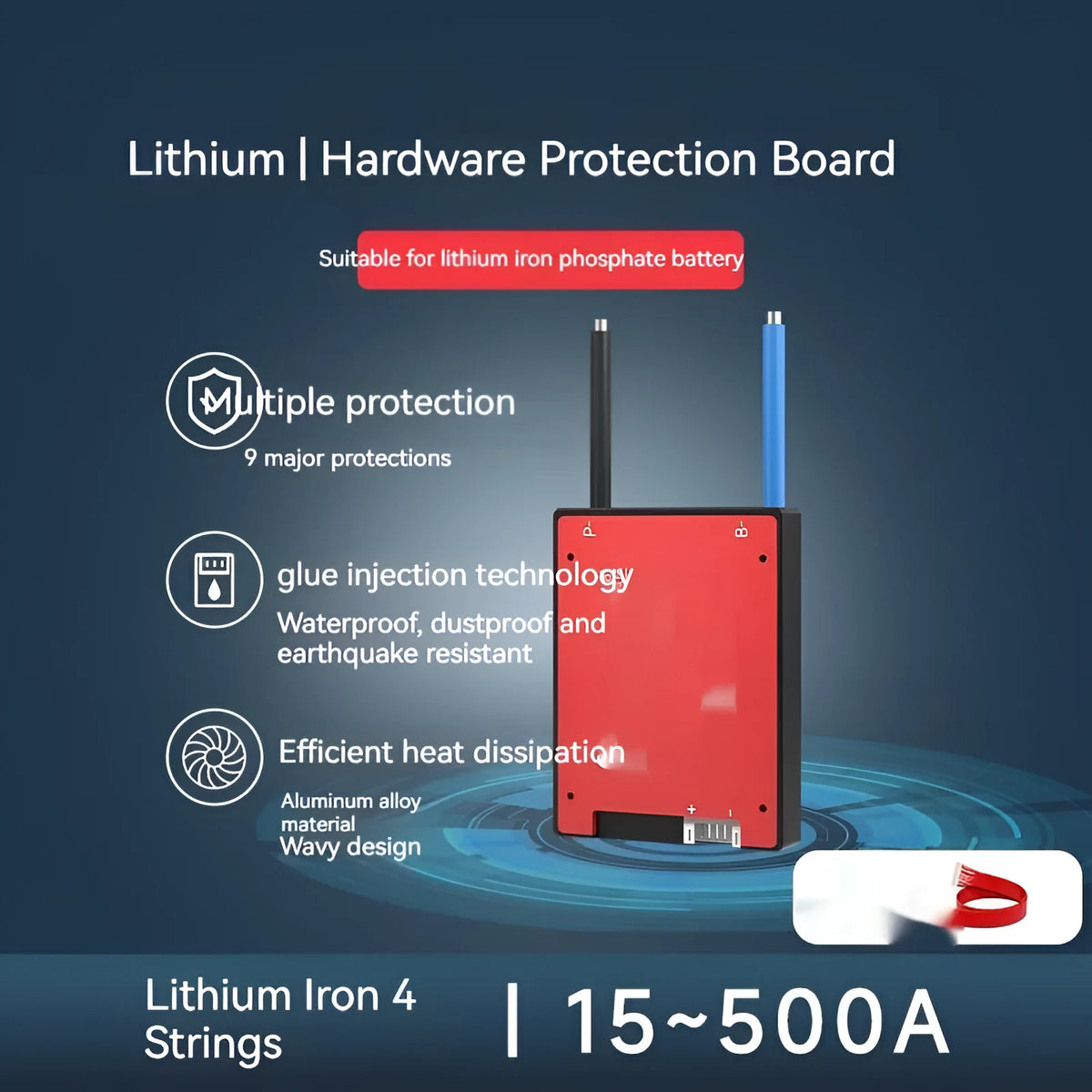

Dali 12V Lithium Iron Phosphate Battery Protection Board with Cell Balancing for 4S Packs

This Dali battery protection board, or Battery Management System (BMS), is engineered specifically for 12-volt lithium iron phosphate (LiFePO4) battery banks. It is a critical component for anyone building or maintaining a custom battery pack from four LiFePO4 cells connected in series (a 4S configuration). Its primary role is to monitor and protect the battery from common failure modes that can cause damage or safety hazards. By preventing overcharging, over-discharging, and short circuits, it directly contributes to the safety, reliability, and longevity of your energy storage solution. Available across a wide spectrum of current capacities, from 15 amps to a substantial 500 amps, it caters to diverse applications ranging from small solar setups and portable power stations to demanding uses in electric vehicles and high-power industrial equipment.

Features and Construction

The board's functionality is defined by its electrical specifications and key features that address the needs of LiFePO4 chemistry. The core design is focused on protection and maintenance rather than complex programmable features, making it a practical choice for many DIY and commercial applications.

Material and Build

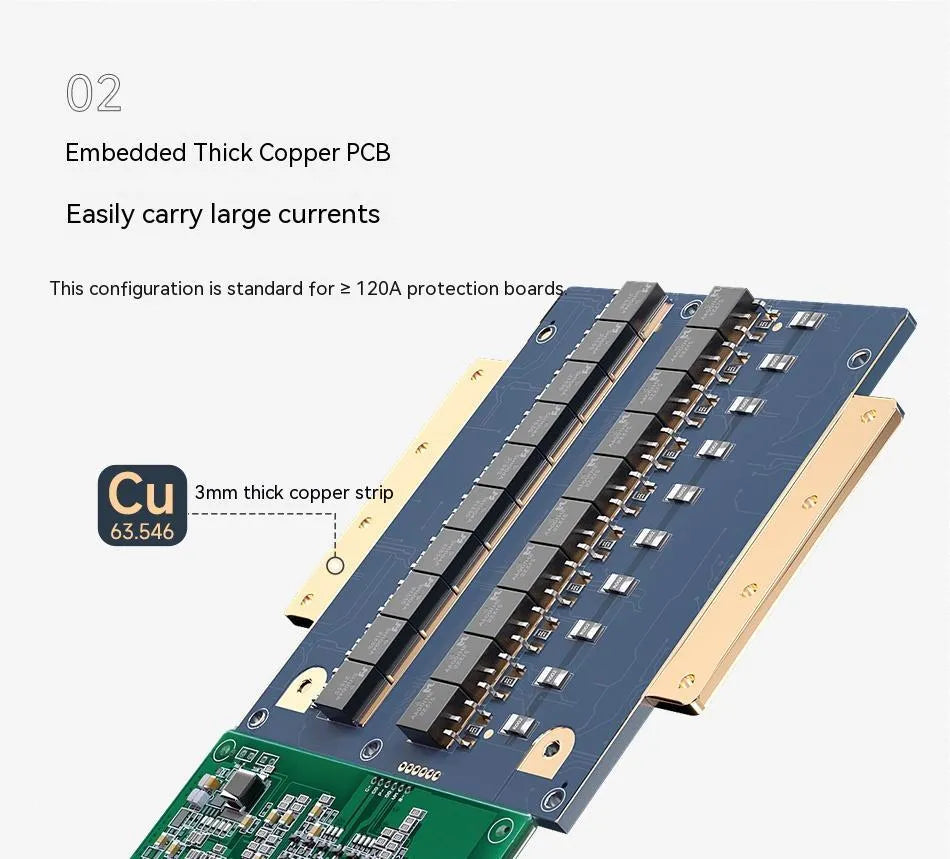

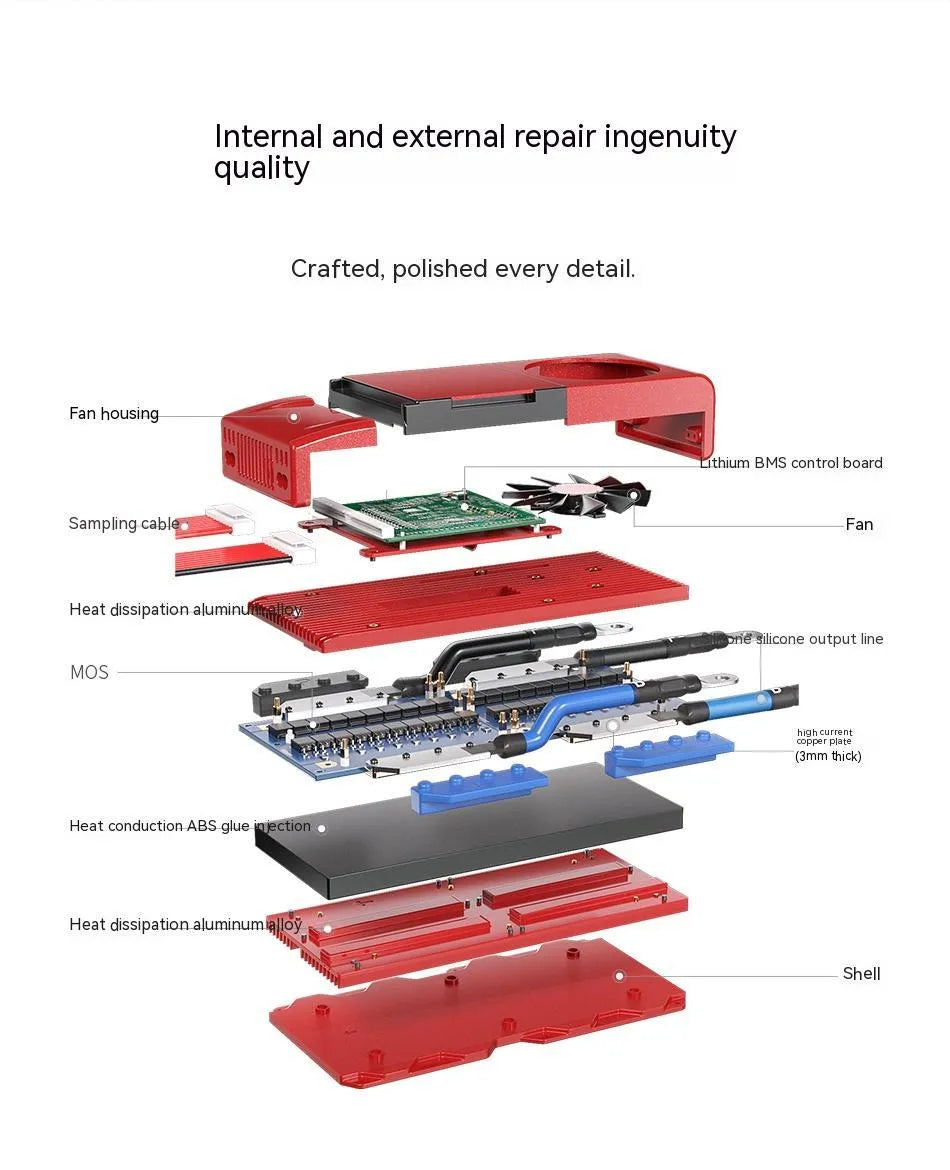

The protection board is constructed using standard electronic components on a printed circuit board (PCB). The source text highlights a key physical differentiator for high-power applications: optional active cooling. For models rated at 80 amps and above, a variant with an integrated cooling fan is available. This fan is a practical addition to manage the heat generated during sustained high-current operation, which can help maintain the board's performance and long-term reliability under load. The presence of this option allows users to select a model suited to their thermal management needs.

Size and Practical Fit

The source data does not provide specific physical dimensions, weight, or mounting hole specifications for this protection board. When planning an installation, it is essential to check the manufacturer's detailed specifications for the exact model you select (e.g., 12V100A with fan) to ensure it will fit within your battery enclosure or project housing. The lack of stated dimensions means you should verify this critical fit factor before purchase to avoid installation issues.

Uses and Placement

This protection board is versatile, supporting any application that uses a 12V LiFePO4 battery pack. Its value lies in providing essential safety and maintenance functions that are otherwise missing from a bare battery pack.

Event or Professional Use

In professional, commercial, or event settings where reliability is paramount, this BMS is crucial. It can be integrated into backup power systems for telecommunications, security systems, or medical equipment where unexpected battery failure is not an option. For event professionals using battery-powered lighting, sound equipment, or food trucks, the high-current models with fan cooling ensure stable power delivery throughout extended use. The cell balancing function is particularly important here, as it helps maintain full capacity and runtime across long periods between charges.

Everyday Home Use

For home users, this board is ideal for DIY solar energy storage projects, powering caravans or campervans (motorhomes), and building custom power banks for tools or gardening equipment. It safeguards expensive LiFePO4 cells in home energy storage systems from common threats like a faulty charger leaving the battery on charge indefinitely. Lower-current models (15A-60A) are well-suited for these smaller-scale, residential applications where extreme loads are less common but protection remains essential for safety and investment protection.

Benefits and Buying Value

The value of this product stems from its focused functionality, range of options, and the direct benefits it provides to a battery pack's operation and lifespan.

Reuse and Low Maintenance

By integrating cell balancing, this board actively maintains the health of the battery pack. Balancing ensures all four cells in the series string charge and discharge at similar rates, preventing one weak cell from limiting the entire pack's capacity or causing a premature shutdown. This proactive maintenance extends the usable life of the battery pack, delaying the need for costly cell replacements and maximising the return on your investment in LiFePO4 technology. The protection features also prevent catastrophic failures that could permanently damage the cells.

Why Choose This Product

Choosing this Dali protection board involves matching its specifications to your project. The key decision points are the continuous current rating and the need for a cooling fan. First, calculate the maximum continuous current your application will draw and select a board with a rating that meets or exceeds this figure. For applications with sustained high loads or poor ventilation, opting for a fan-cooled model is a prudent choice for thermal management. The wide availability of models from 15A to 500A means you are likely to find a suitable match without needing to significantly over-specify, allowing for a cost-effective and appropriately sized solution for your specific 12V LiFePO4 battery pack.
