M5Stack RFID2 13.56MHz NFC Reader Module for Arduino and IoT Development

The M5Stack RFID2 module provides a practical solution for adding Near Field Communication (NFC) capabilities to maker projects, educational setups, and Internet of Things prototypes. Operating at the standard 13.56MHz frequency, this compact sensor enables reading and writing to compatible NFC tags without requiring external antenna design or complex RF engineering. Its integration-focused design includes an I2C interface for straightforward connection to popular microcontrollers like those in the Arduino ecosystem and M5Stack's own devices. With support for common protocols including ISO14443A, MIFARE, and NTAG, the module serves applications ranging from access control systems and inventory tracking to interactive art installations and educational demonstrations where secure, short-range data exchange is needed.

Technical Specifications and Performance

The module's core technical data defines its operational parameters and integration requirements. These specifications guide appropriate application selection and help developers understand the module's capabilities within their system architecture.

Communication Interface and Data Rate

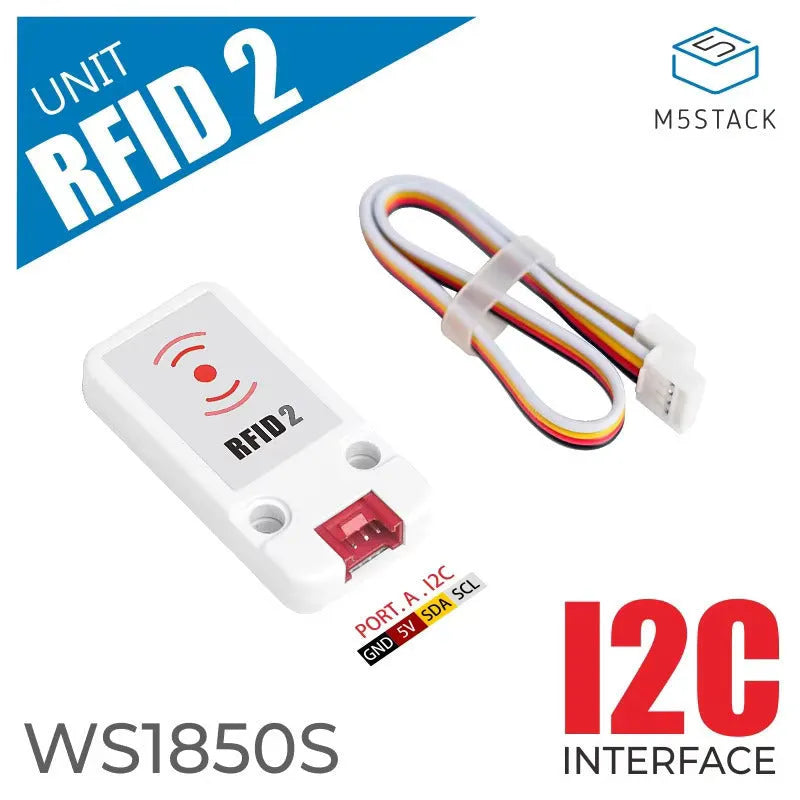

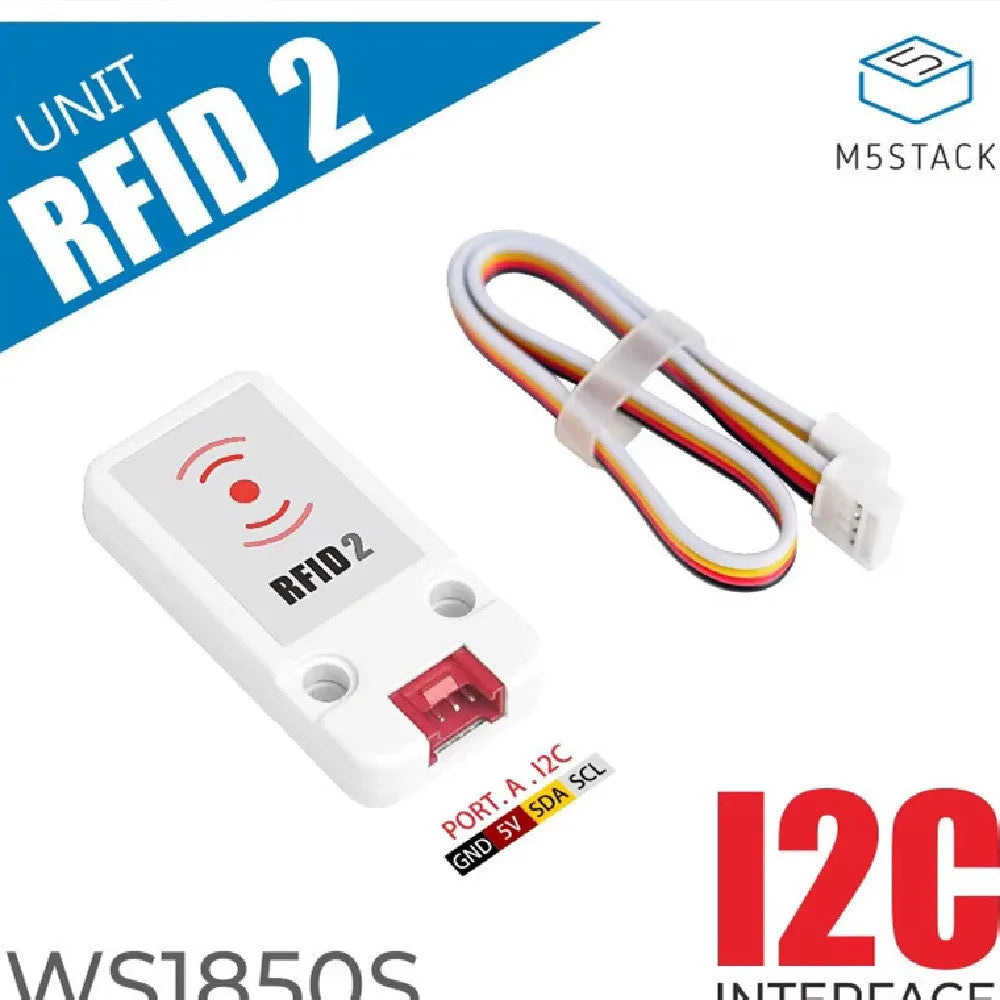

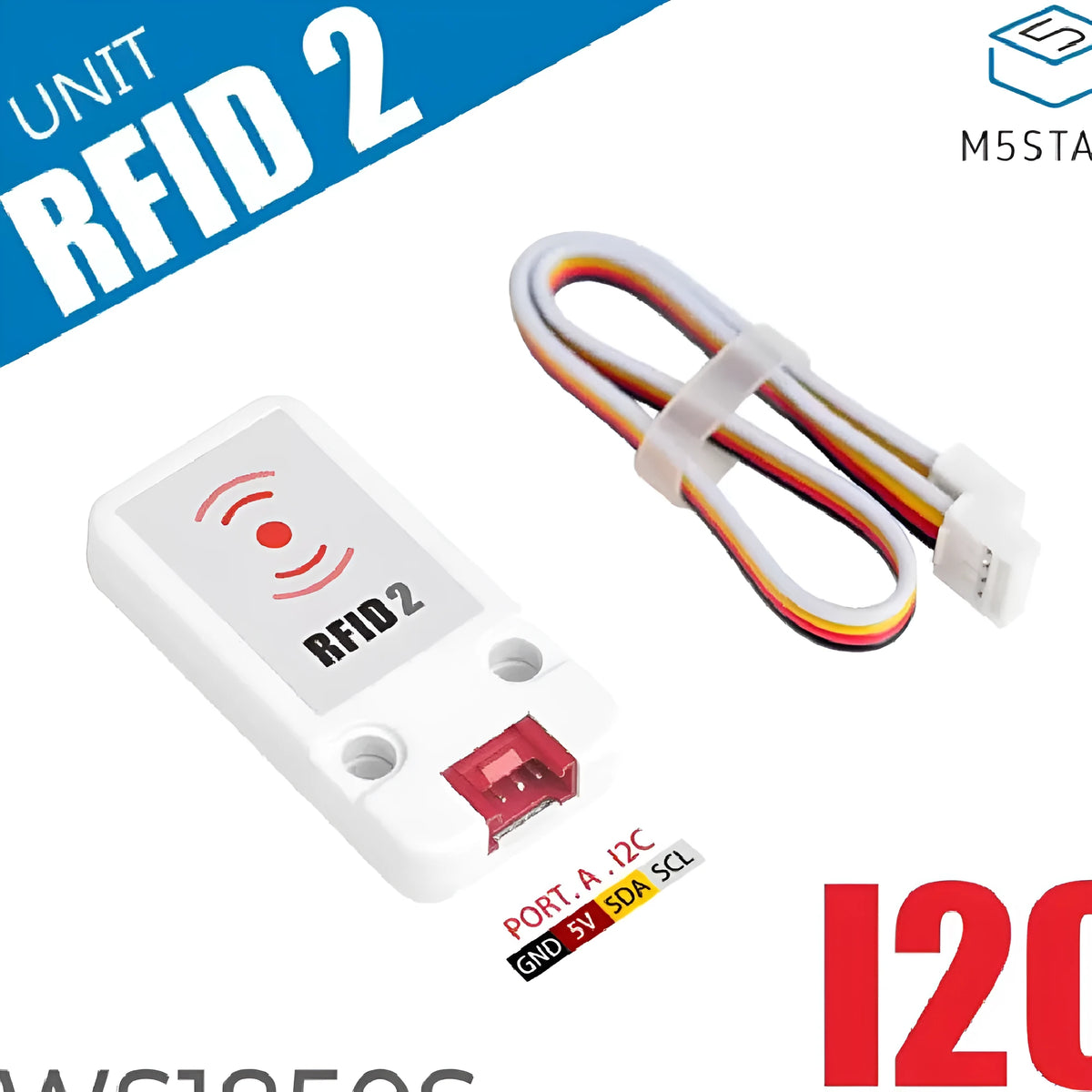

The RFID2 module communicates via an I2C interface, offering flexibility in controller selection. It supports two speed modes: a fast mode with data rates up to 400 kilobits per second and a high-speed mode capable of reaching 3400 kilobits per second. This 64-byte transceiver buffer manages data flow between the RFID chip and the host controller. The interface uses the included HY2.0-4P cable for connection, providing both power and data lines in a single connector.

Operating Parameters and Range

The module operates at 13.56MHz, the standard frequency for NFC applications. Its reading distance is specified as less than 20mm, indicating it is designed for close-proximity interactions typical of NFC technology. The operating temperature range spans from -20°C to 85°C, allowing use in various environmental conditions. Power consumption during sleep mode is 1 microampere, while transmission operates at 4dBm power output.

Physical Design and Integration

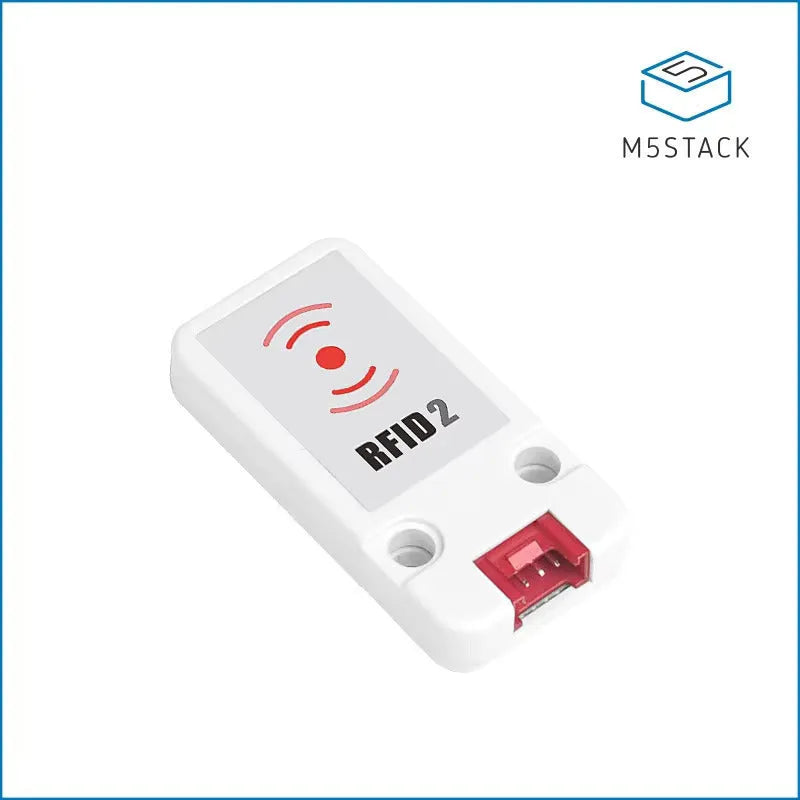

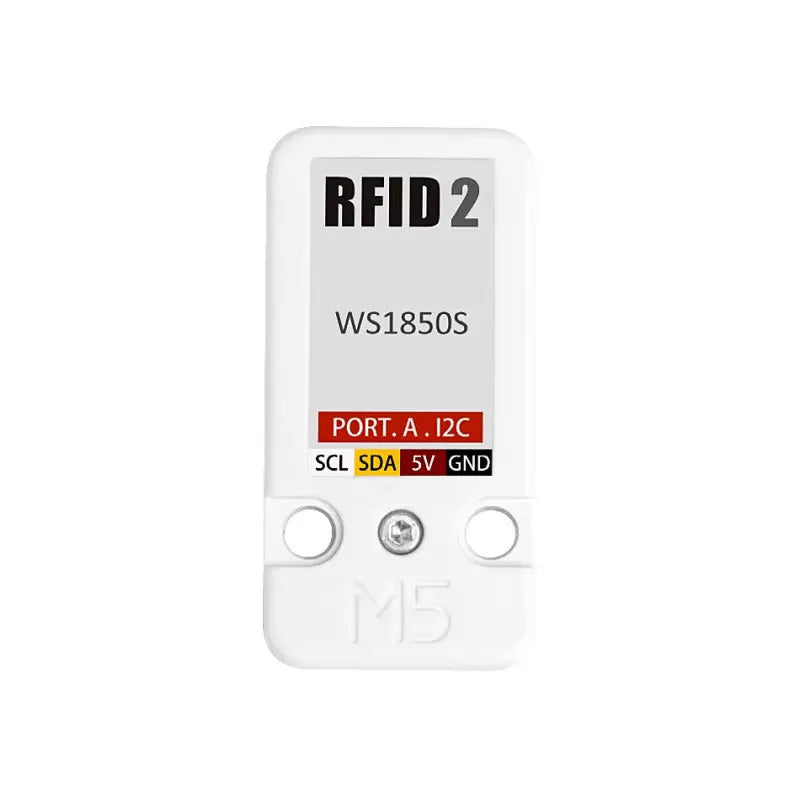

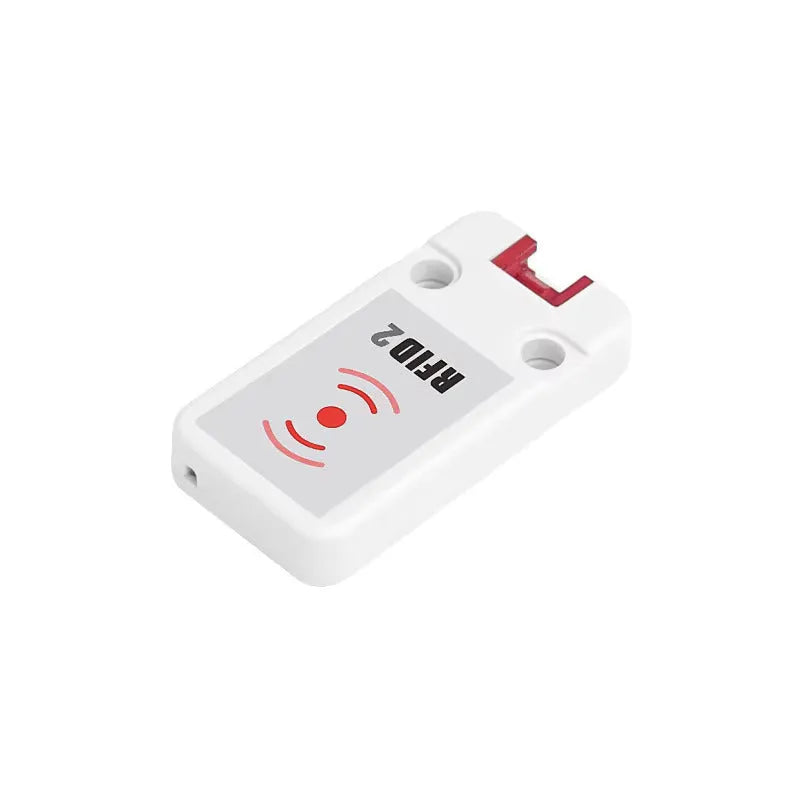

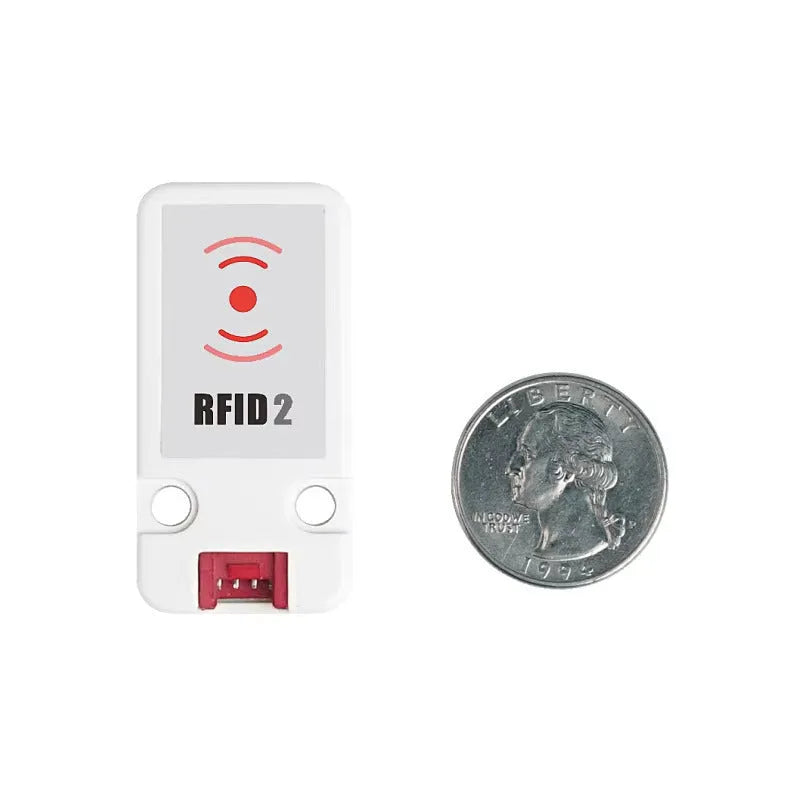

The unit measures 7 centimetres by 2 centimetres, creating a compact footprint suitable for space-constrained projects. Two LEGO-compatible mounting holes enable mechanical attachment to structures or enclosures without specialised brackets. This physical design supports both permanent installations and temporary prototyping setups where components might need repositioning during development.

Development Platform Compatibility

This RFID module is designed to work with popular development environments, reducing the learning curve for implementing NFC functionality. The supported platforms cover both block-based programming for beginners and text-based coding for advanced users.

Arduino Development Environment

The module is compatible with the Arduino ecosystem, allowing developers to use familiar libraries and coding patterns. This compatibility means existing Arduino sketches and community resources can often be adapted for use with this RFID reader. The I2C interface aligns with standard Arduino communication methods, requiring minimal additional circuitry.

UIFlow Blockly and Python Programming

For M5Stack device integration, the module works with UIFlow's visual Blockly programming interface and Python coding environment. This dual approach supports both educational users who benefit from drag-and-drop programming and more advanced developers preferring text-based coding. The provided EasyLoader software facilitates firmware updates and programming for Windows users working with M5Stack controllers.

Setup and Configuration Process

Initial setup involves connecting the module to a compatible controller using the supplied cable. For M5Stack systems, the EasyLoader application handles programming after drivers are installed (CP210X for M5Core, though not required for M5StickC). Users select the appropriate COM port and baud rate (115200 or 750000 for M5StickC) before uploading code. This process standardises deployment across multiple units.

Applications and Implementation Scenarios

The module's technical profile makes it suitable for various applications where short-range wireless communication adds functionality. Its protocol support and development platform compatibility enable both simple demonstrations and complex integrated systems.

IoT and Smart Device Integration

Within Internet of Things applications, the module can authenticate users, log equipment usage, or trigger actions based on NFC tag presence. Its compatibility with ESP32-based controllers like M5Stack devices makes it suitable for connected projects that might also incorporate displays, sensors, or wireless connectivity. The <20mm reading distance ensures intentional interactions rather than accidental triggers.

Educational and Maker Projects

For educational contexts, the module introduces RFID/NFC technology concepts through hands-on experimentation. Students can create access control simulators, interactive posters, or inventory tracking prototypes. The LEGO-compatible mounting holes facilitate integration into mechanical structures often used in STEM education. Support for both block-based and text programming accommodates different skill levels.

Prototyping and Product Development

Developers can use the module to prototype commercial products requiring NFC functionality before designing custom circuitry. The available specifications—including operating temperature range, data rates, and physical dimensions—inform whether the module meets application requirements or whether custom design becomes necessary. The module serves as both a development tool and a potential component in low-volume production.
