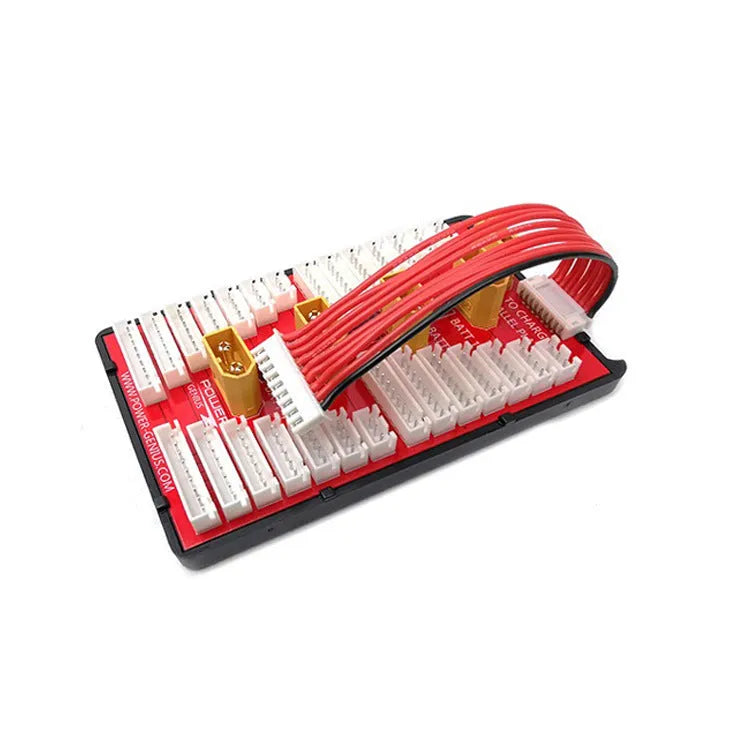

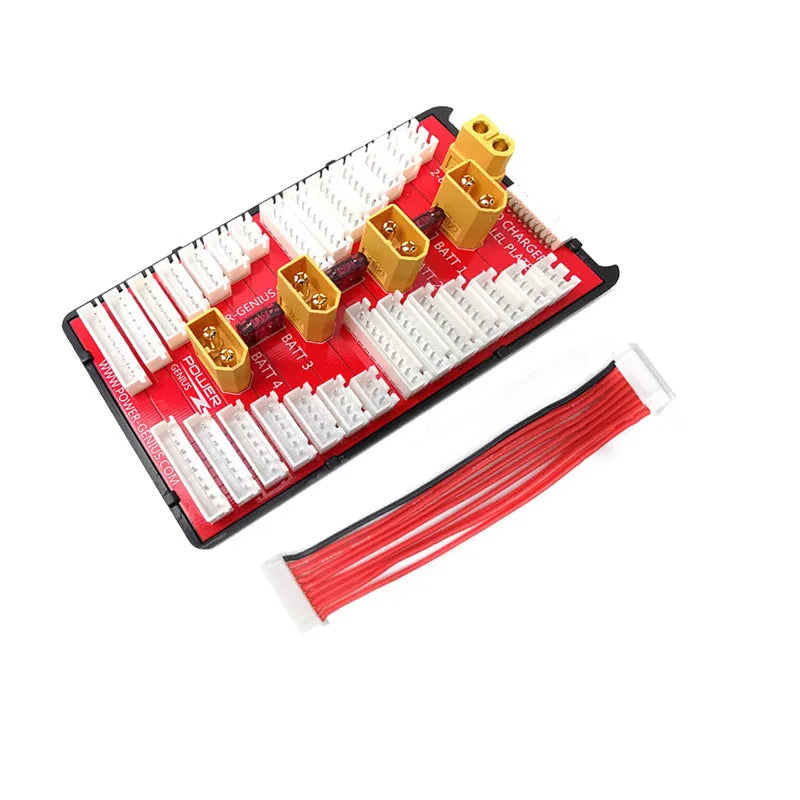

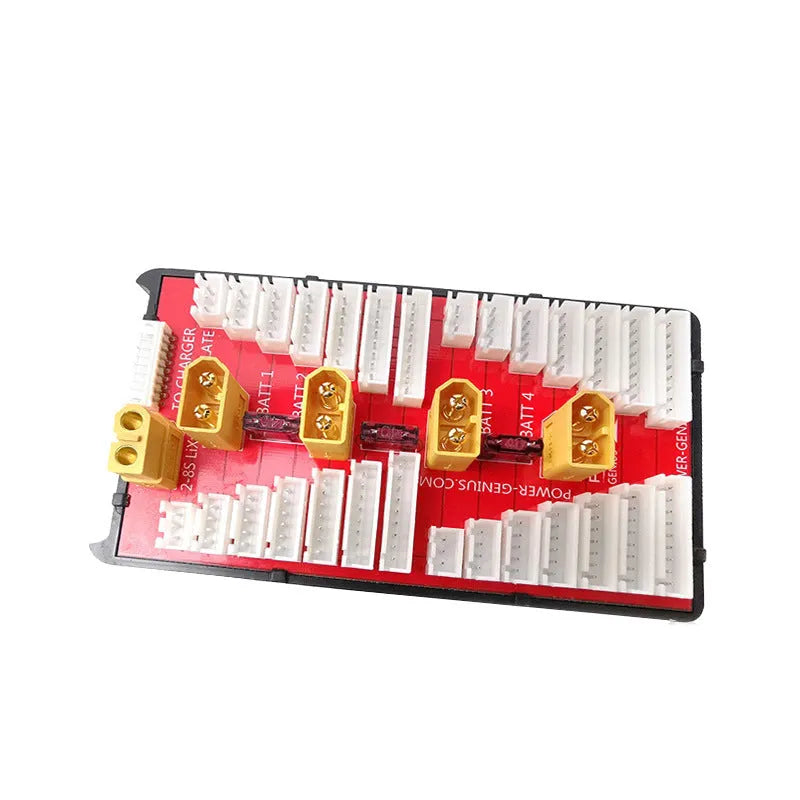

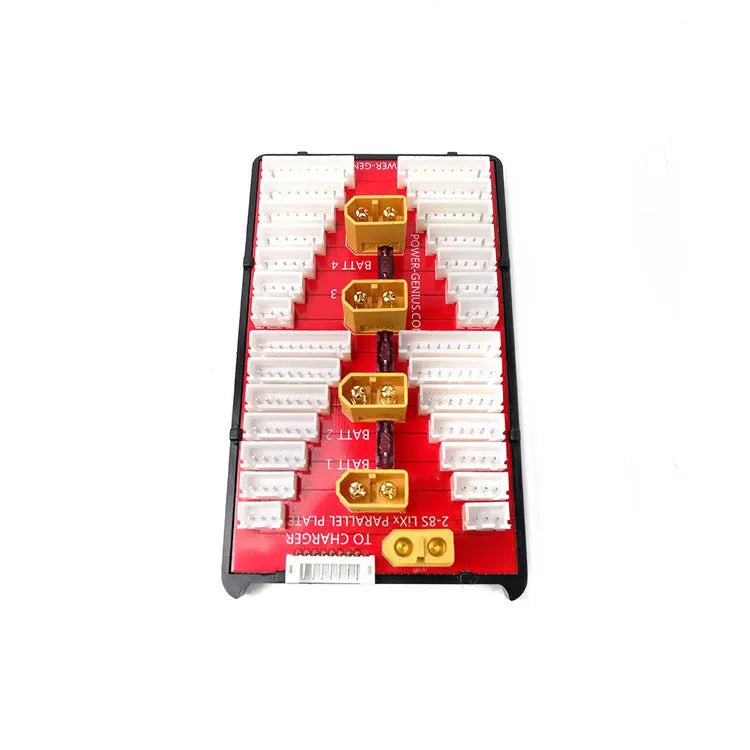

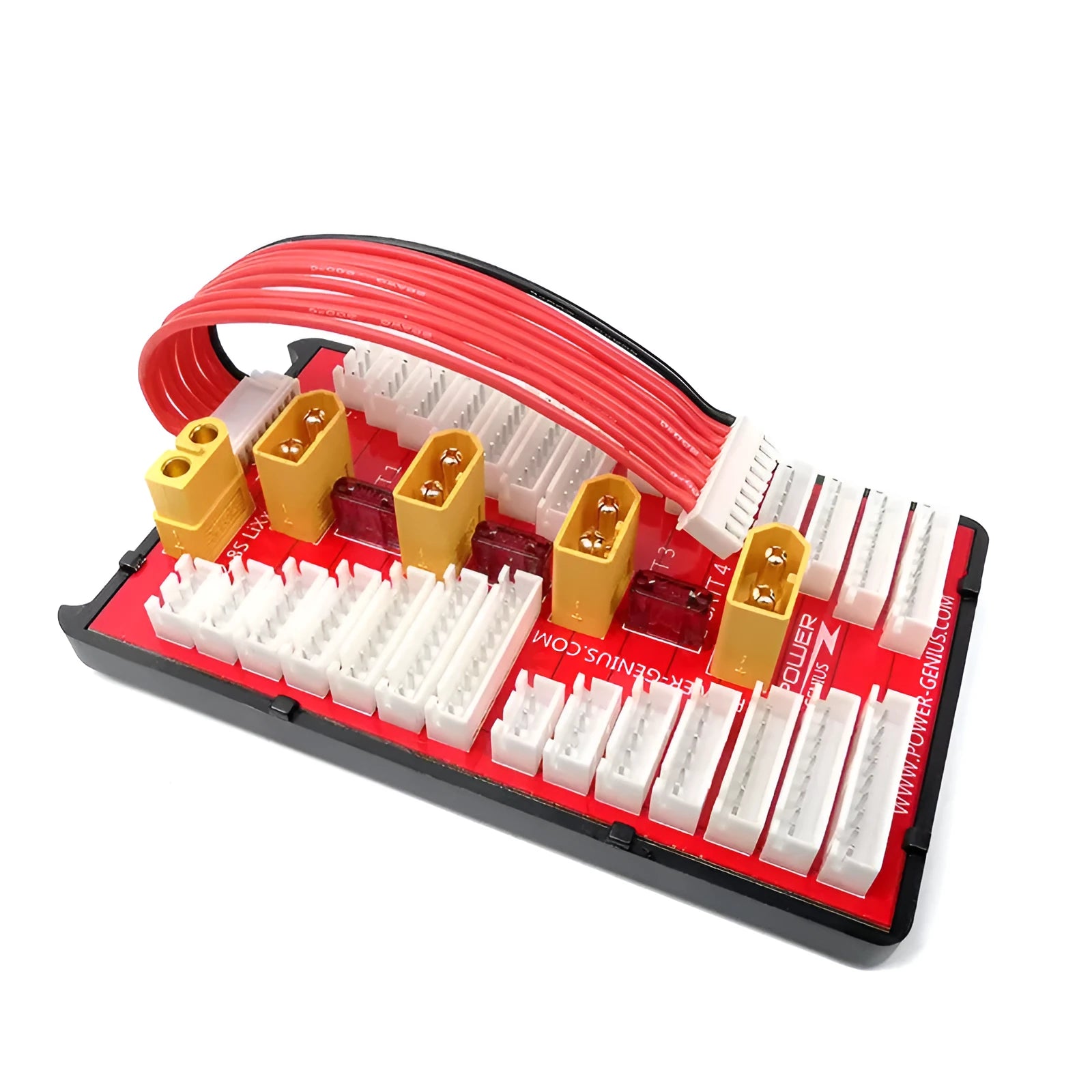

Parallel Charge Board for Simultaneous Balance Charging of Up to 4 LiPo Battery Packs

Designed for RC car, drone, and aeromodelling enthusiasts, this parallel charging board significantly reduces the time spent managing multiple lithium polymer (LiPo) batteries. By allowing up to four battery packs with identical cell counts to be charged in parallel, it consolidates what would be four separate charging cycles into a single operation. The board is engineered for safety and performance, featuring a 35A current-rated PCB, protective fuses between battery groups, and high-quality gold-plated connections. It streamlines the workflow for hobbyists who need to prepare several batteries for extended use, turning a repetitive task into an efficient, single-setup process.

Features and Construction

The board's construction focuses on delivering safe, high-current capacity for demanding RC applications. Every component is selected to handle the electrical loads of parallel charging, where combined currents can be substantial.

Material and Build

The core of the board is a printed circuit board (PCB) manufactured with thicker copper foil. This design is specifically mentioned as supporting charging currents up to 35A, which is essential when multiple batteries are drawing power simultaneously. Electrical connections are made via high-quality gold-plated connectors, which offer low resistance and reliable conductivity over repeated use. The balance port output lines utilise 18AWG multi-strand silicone wire, a flexible and durable cable choice suitable for the balance charging signals.

Size and Practical Fit

While exact physical dimensions are not specified, the board's design is functional for a workshop or charging station. It provides clearly labelled connection points for up to four battery packs, including both main power (T plug) and balance port headers. The inclusion of safety protective T plug silicone caps is a practical touch, allowing unused connectors to be covered safely between uses, preventing dust ingress or accidental contact with metal objects that could cause a short circuit.

Uses and Placement

This adapter board transforms the charging process for users of multiple LiPo batteries, fitting seamlessly into both hobbyist and more intensive usage patterns.

Event or Professional Use

For race days, flying sessions, or professional filming with drones, where battery turnaround time is critical, this board is highly effective. Charging four 4S 5000mAh packs in parallel effectively creates a single 4S 20000mAh battery for the charger to manage, often allowing the use of a higher charge rate safely. This can substantially shorten total charging time compared to sequentially charging each pack, meaning less downtime and more operational time for equipment.

Everyday Home Use

For the regular hobbyist, it simplifies post-use charging. Instead of monitoring and swapping four batteries individually on a charger, all can be connected at once. The board also helps in battery maintenance, as the parallel connection averages out minor voltage differences between cells during the balance phase, which can lead to more consistent cell health across a matched set of packs over time.

Benefits and Buying Value

The primary value lies in time savings, safety enhancements, and the promotion of better battery management through its specific feature set.

Reuse and Low Maintenance

As a durable tool made with a robust PCB and quality connectors, the board is built for repeated, long-term use within a charging setup. Its safety features, like the 40A fuses between battery groups, protect both the board and your batteries from damage due to excessive voltage differences, a common risk in parallel charging. This proactive protection can prevent costly battery or charger failures.

Why Choose This Product

This board offers a focused solution for a specific and common bottleneck in RC hobbies: slow battery charging. It addresses this by providing a safe, high-current platform for parallel charging. The explicit 35A PCB rating, inclusion of fuses, and use of gold-plated connectors are tangible differentiators that translate to reliable performance. It fulfils a clear need without unnecessary complexity, making advanced battery management more accessible.
