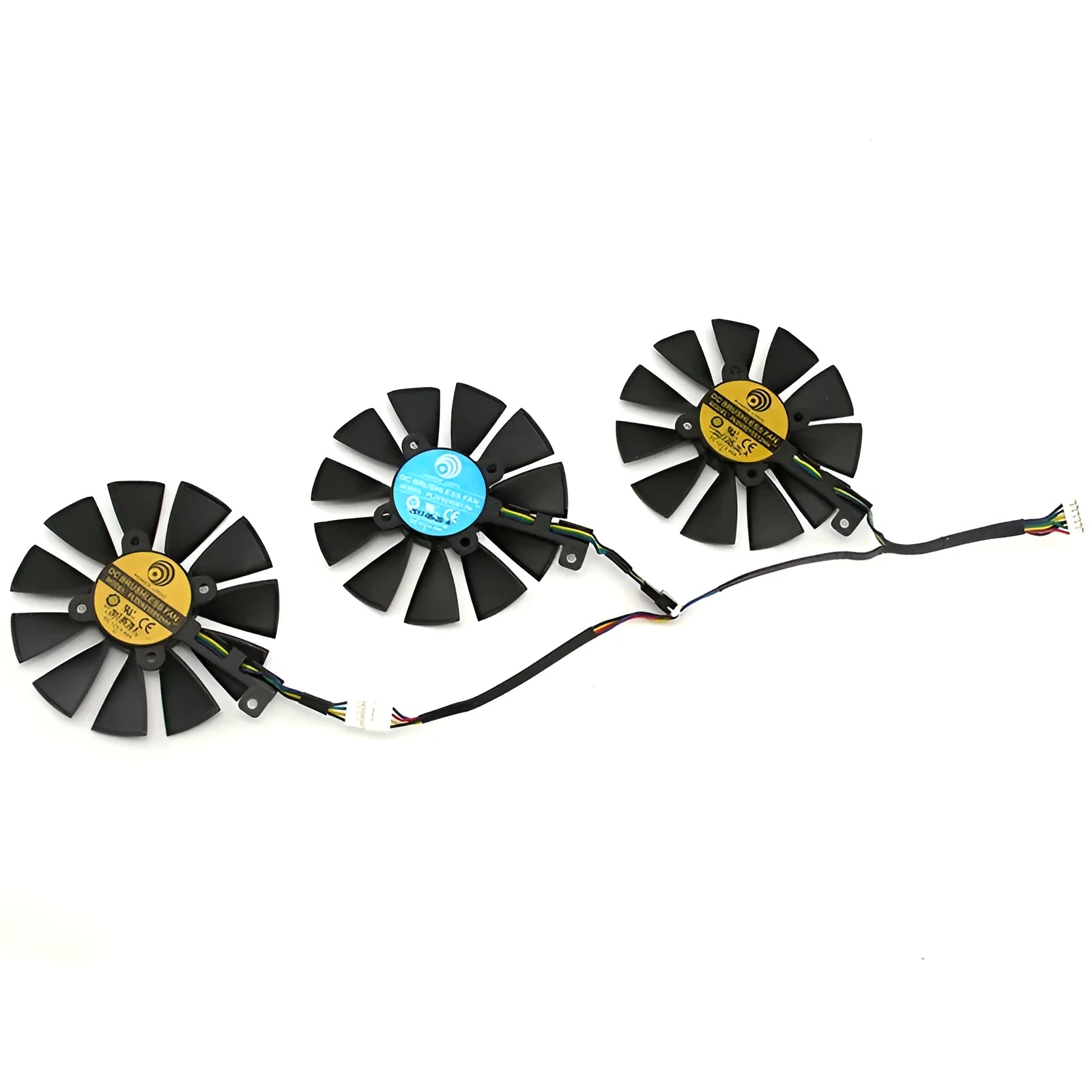

Power Logic PLD09210S12M PLD09210S12HH Graphics Cooling Fan 12V 0.40AMP 87mm

When your graphics card fan begins to fail, you face immediate risks of overheating, thermal throttling, and potential hardware damage. This replacement fan from Power Logic offers a reliable, direct-fit solution designed specifically for a wide range of ROG Strix and Dragon series graphics cards. With a compact 87mm x 87mm x 12mm size and 4-pin header connector, it ensures proper PWM speed control to maintain safe operating temperatures during intensive gaming or rendering tasks. Whether you are repairing a card yourself or replacing a worn-out unit, this fan provides the necessary airflow without compatibility issues.

Features and Construction

This fan is built to meet the exact dimensions and electrical specifications required for compatible graphics cards. Its design prioritises fit and function for straightforward replacement.

Dimensions and Mounting

The fan measures 87mm x 87mm x 12mm (L x W x H), allowing it to fit within standard GPU cooler shrouds. Mounting holes are spaced 28mm centre to centre across each of the four corners, matching the pattern found on most compatible cards.

Electrical Specifications

It operates at 12V DC with a current draw of 0.40AMP, typical for small axial fans used in GPU cooling. The 4-pin header supports PWM control, enabling the graphics card to adjust fan speed dynamically based on temperature loads.

Model Variations

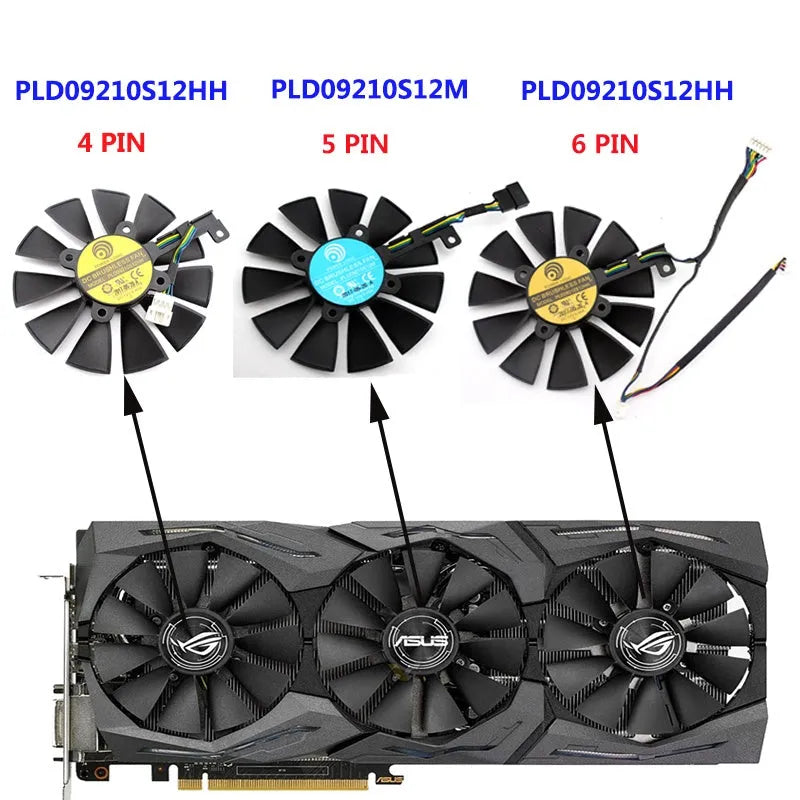

The fan is available under model numbers PLD09210S12M and PLD09210S12HH, both offering the same physical dimensions and electrical characteristics. Select the correct connector type from available options including 3-pin, 4-pin, 5-pin, or 6-pin connectors when ordering.

Compatibility and Application

This fan is designed to replace the original cooler fan on a specific set of ROG Strix and Dragon series graphics cards. Compatibility is based on exact fit and connector type.

Supported Graphics Cards

The fan fits models including ROG Strix RX VEGA64 8GB, ROG Strix RX 480, ROG-STRIX-RX580-T8G-GAMING, ROG Strix RX VEGA56 8GB, ROG-STRIX-RX580-8G-GAMING, DRAGON GTX1070-TOP8G, DRAGON GTX1070-O8G, DRAGON GTX1070-8G, ROG-STRIX-GTX1070TI-A8G-GAMING, ROG-STRIX-GTX1070TI-8G-GAMING, ROG STRIX-GTX1070-O8G-GAMING, ROG STRIX-GTX1070-8G-GAMING, STRIX-GTX980TI-DC3-6GD5, ROG-STRIX-GTX1080TI-O11G-GAMING, ROG-STRIX-GTX1080TI-11G-GAMING, ROG STRIX-GTX1080-O8G-GAMING, ROG-STRIX-GTX1080-O8G-11GBPS, ROG STRIX-GTX1080-A8G-GAMING, ROG-STRIX-GTX1080-A8G-11GBPS, ROG STRIX-GTX1060-O6G-GAMING, ROG STRIX-GTX1060-6G-GAMING, STRIX-R9390-DC3-8GD5-GAMING, STRIX-R9390-DC3OC-8GD5-GAMING, STRIX-R9390X-DC3-8GD5-GAMING, STRIX-R9390X-DC3OC-8GD5-GAMING, and RADEON R9 FURY DC3 4G.

Connector Types Available

When ordering, you can choose between 3-pin, 4-pin, 5-pin, or 6-pin connector models to match your specific graphics card header. The standard 4-pin option provides PWM control for automatic speed regulation.

Installation and Practical Use

Replacing a faulty GPU fan can restore your graphics card to normal operating condition and extend its usable life. This fan is designed for straightforward installation.

Installation Process

Power off the system and disconnect all cables. Remove the graphics card and unscrew the old fan from its heatsink. Disconnect the old fan header and connect the replacement fan. Secure it using the original screws at the mounting holes. Reinstall the graphics card and test.

Maintenance Considerations

Keep the fan blades and surrounding heatsink clear of dust buildup to maintain airflow. No special maintenance is required beyond periodic cleaning. The fan is a sealed unit and does not require lubrication.

Why Choose This Fan

This replacement fan offers a direct-fit solution for many popular ROG Strix and Dragon graphics cards. Its 87mm size, 12V operation, and PWM support ensure compatibility and proper cooling performance.
