Profile Ruler Contour Gauge for Accurate Irregular Shape Duplication

Standard measuring tools often fall short when you need to copy complex profiles from pipes, tiles, or uneven surfaces. This plastic ABS contour gauge is designed to solve that problem by providing a reliable method for transferring irregular shapes directly onto your workpiece. Whether you are laying flooring, installing skirting boards, or working on a carpentry project, this tool helps you achieve a precise fit every time. Its high-density symmetrical strips lock into the target shape, allowing for accurate repeat measurements.

Features and Construction

The gauge is built for practical, daily use with materials and design choices focused on accuracy and durability.

Material and Build

Constructed from plastic ABS, the gauge features high-density symmetrical strips that hold their shape for consistent profiling. The teeth are manually adjustable and designed to stay tight, ensuring they do not become loose over time, which contributes to finer workmanship. The clear scale markings in both metric and inch systems allow for easy unit conversion directly on the tool.

Size and Practical Fit

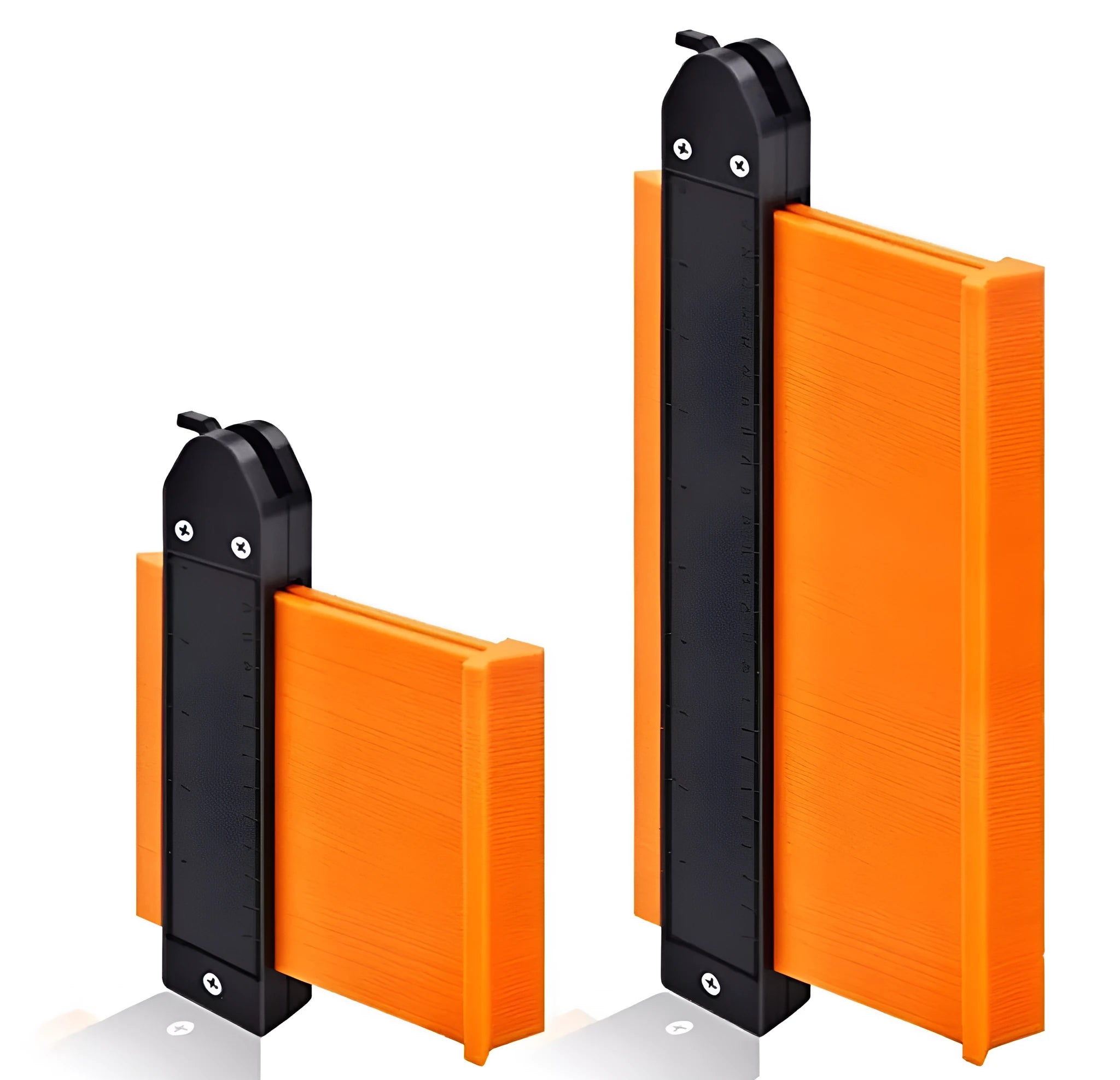

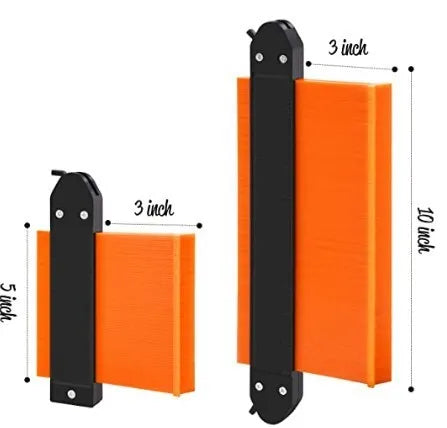

The profile ruler is available in two different sizes: a compact 5-inch version and a larger 10-inch version. This allows you to select the size that best matches the scale of your measuring task. Additionally, it comes in three style options: normal, lock, and widen. The lock style is useful for securing the teeth in place after forming a shape for easy transfer.

Uses and Placement

This contour gauge is a versatile addition to any toolkit, particularly for tasks involving irregular shapes.

Event or Professional Use

Professional carpenters, floor layers, and plumbers can use the gauge to measure and duplicate the shape of pipes, columns, and other obstacles. It simplifies tasks like laying carpet around door frames or cutting laminate flooring to fit around curved skirting boards.

Everyday Home Use

For DIY home improvement projects, this tool is useful for fitting tiles around pipes, marking cuts for worktops, or copying the profile of a broken part for replacement. It provides a straightforward solution for achieving a cleaner finish on common household repairs.

Benefits and Buying Value

The gauge offers practical advantages that reduce waste and improve accuracy for repetitive tasks.

Reuse and Low Maintenance

After forming a shape, the gauge retains the profile for repeated use. The ABS material is robust enough for regular handling, and the tight-fitting teeth require little more than wiping clean after use.

Why Choose This Product

Its combination of a clear dual-scale ruler, locking teeth option, and choice of sizes makes it a flexible tool for a range of profiling jobs. The manually adjustable, non-loose teeth provide a level of precision suited to woodworking and fitting applications.
