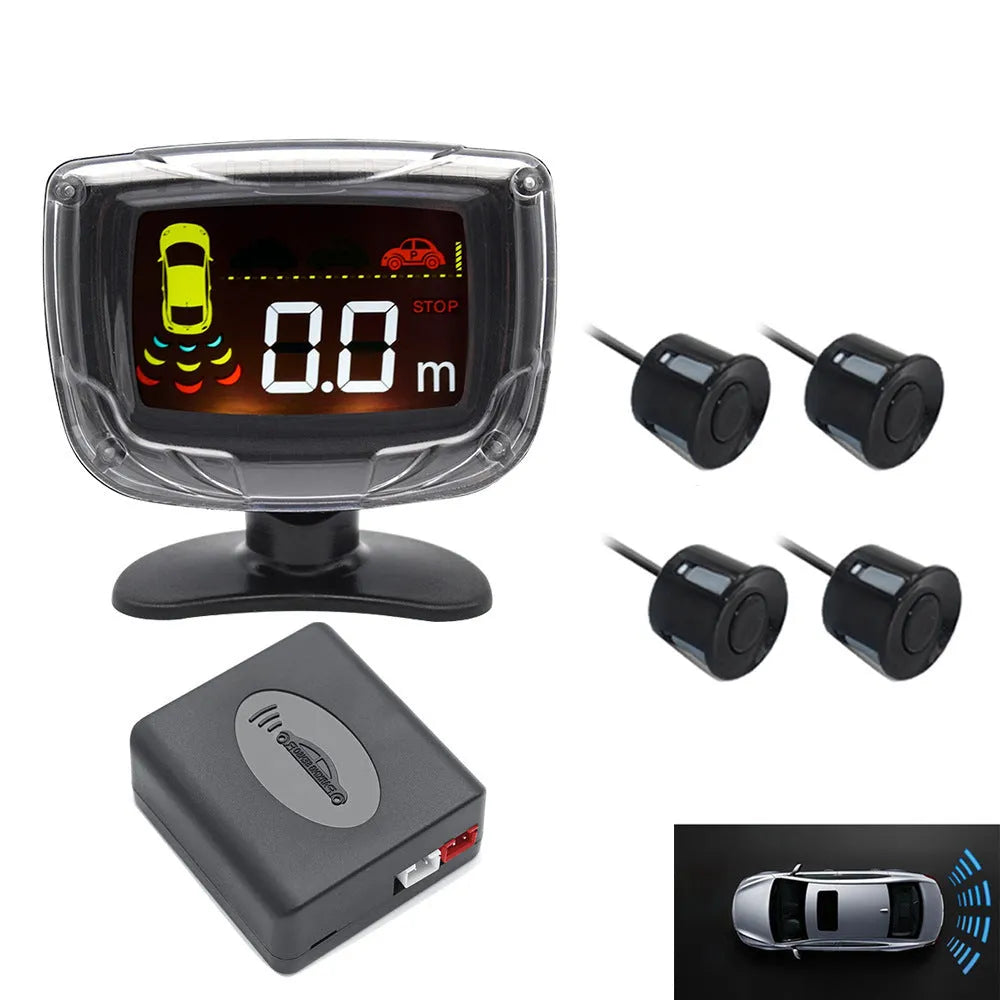

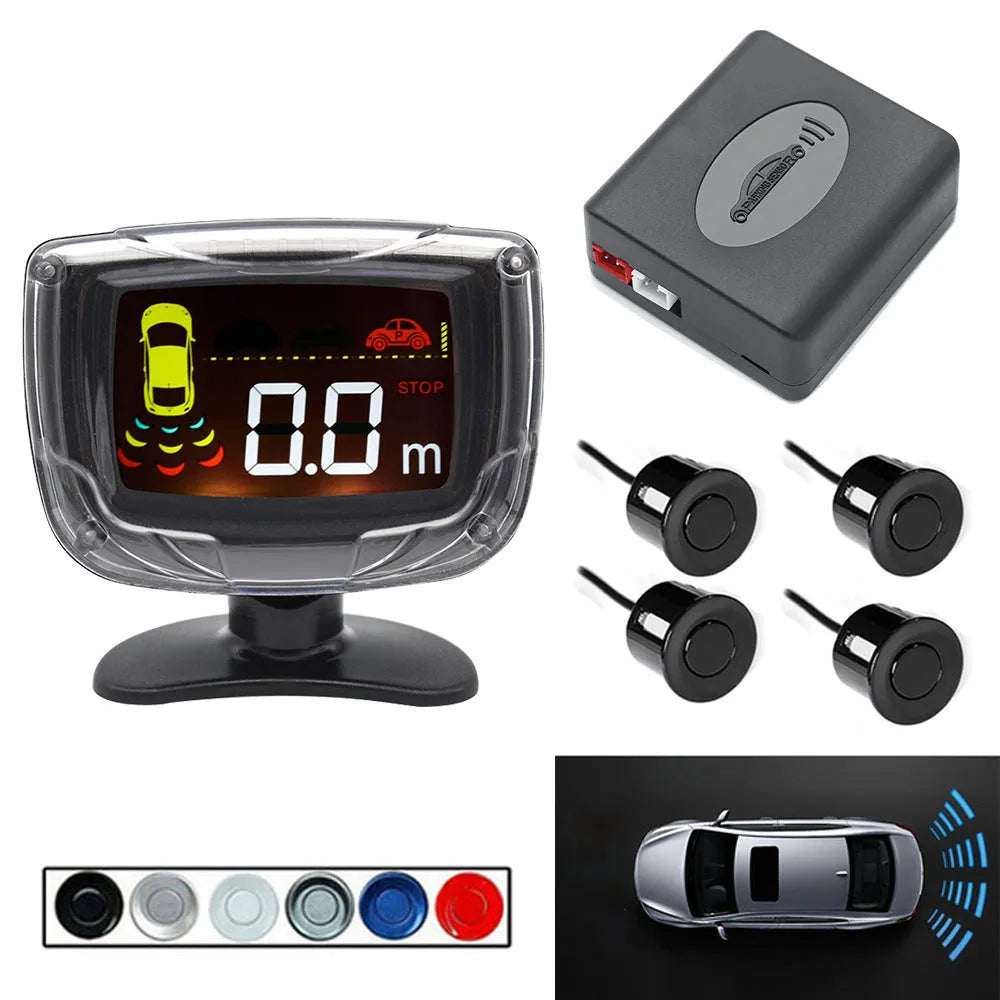

Wireless reversing sensor system with digital LED display and 4 ultrasonic probes for vehicle safety

This intelligent wireless reversing sensor system provides enhanced safety during parking manoeuvres by automatically detecting obstacles behind your vehicle. When you shift into reverse gear, the system activates without requiring any manual switches, using 4 ultrasonic probes to scan the area with 0.3-2 metre detection capability. The combination of audible alerts and visual indicators helps drivers navigate tight spaces confidently, with the system operating reliably across temperatures from -40° to 80°C and functioning effectively even in rainy or dark conditions where visibility may be limited.

Technical Specifications and Performance

The reversing sensor system incorporates precise measurement technology derived from military applications, ensuring accurate obstacle detection and distance calculation. With dual CPUs for rapid response and microcomputer intelligent control, the system maintains centimetre-level display accuracy throughout its operational range.

Detection Range and Accuracy

The system detects obstacles from 0.3 to 2 metres away, with alarm activation occurring between 0.3 and 1.5 metres. It maintains an error range of less than 1 centimetre, providing precise distance measurement that drivers can rely on during parking. The 40KHz working frequency ensures reliable detection performance, while the scope of less than 0.9 metres refers to the effective detection area of individual probes.

Power and Environmental Operation

Operating on standard 12V DC vehicle power, the system consumes between 20-200mA depending on operational mode, with maximum power reaching 2.5W. It functions across extreme temperature ranges from -40° to 80°C, making it suitable for year-round use in various climates. The system's 70-85dB alarm volume measured at 30 centimetres provides audible alerts that are noticeable without being excessively loud inside the vehicle cabin.

Display and Alert System

The crescent-shaped LED display uses a heartbeat-type step-by-step indication pattern with green, yellow, and red five-segment light bars that visually represent obstacle distance. Simultaneously, bi-directional audio alerts provide step-by-step prompts that increase in frequency as obstacles approach closer. The display indicates both the position and orientation of left and right obstacles, giving drivers spatial awareness of their surroundings.

Installation and System Features

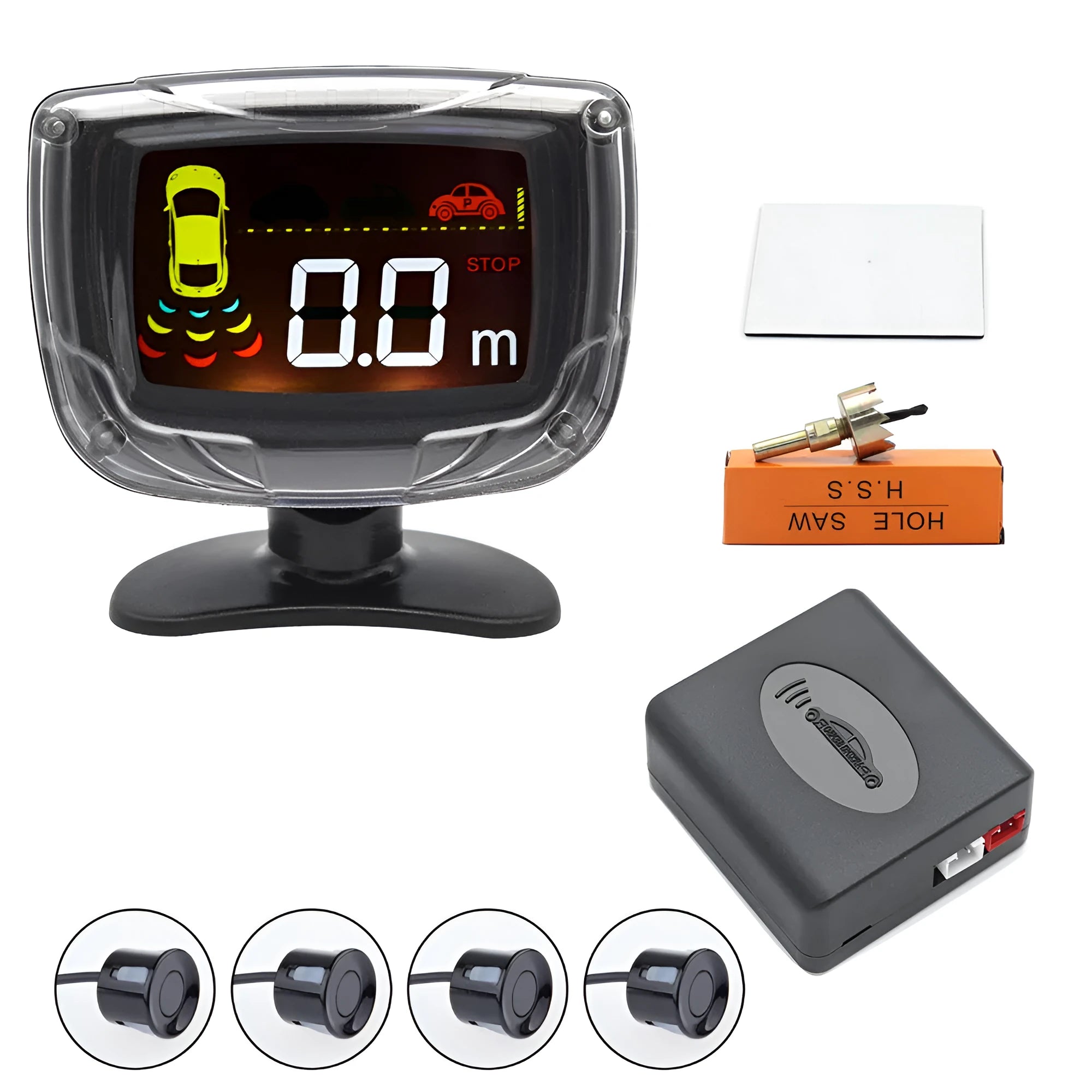

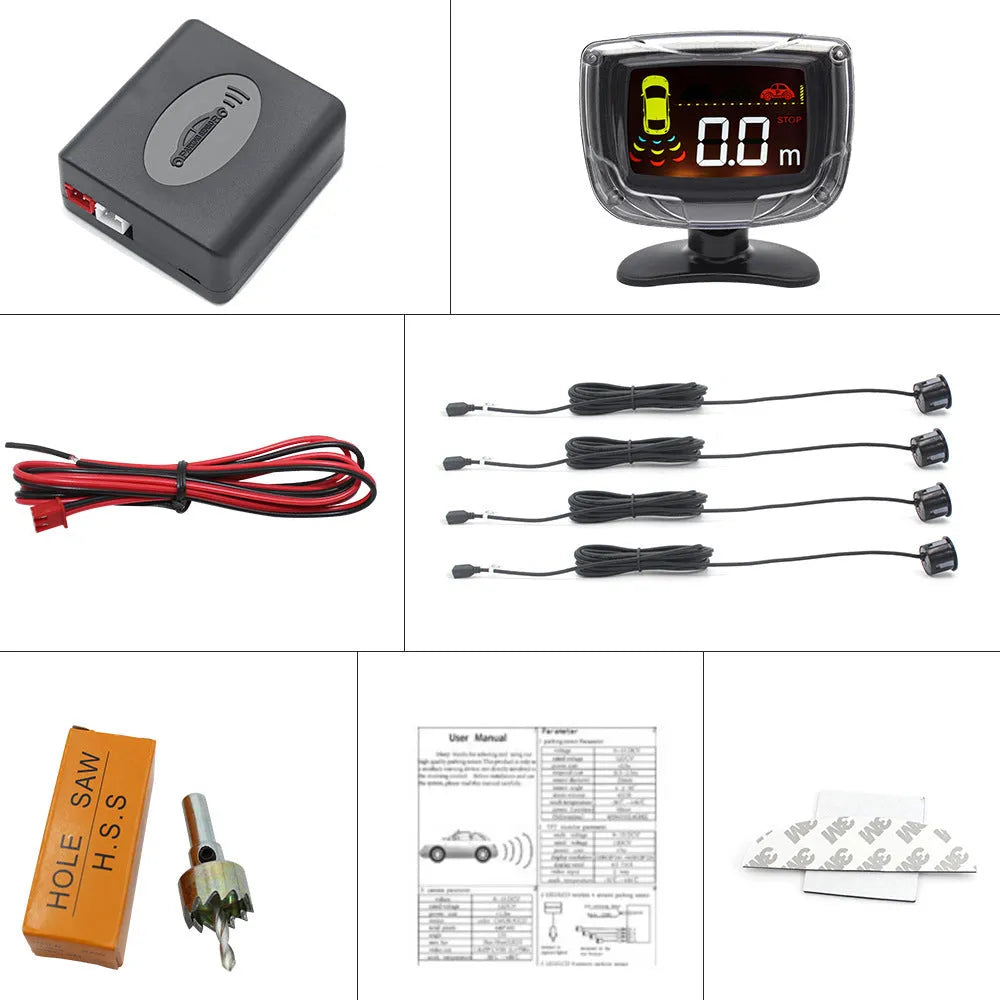

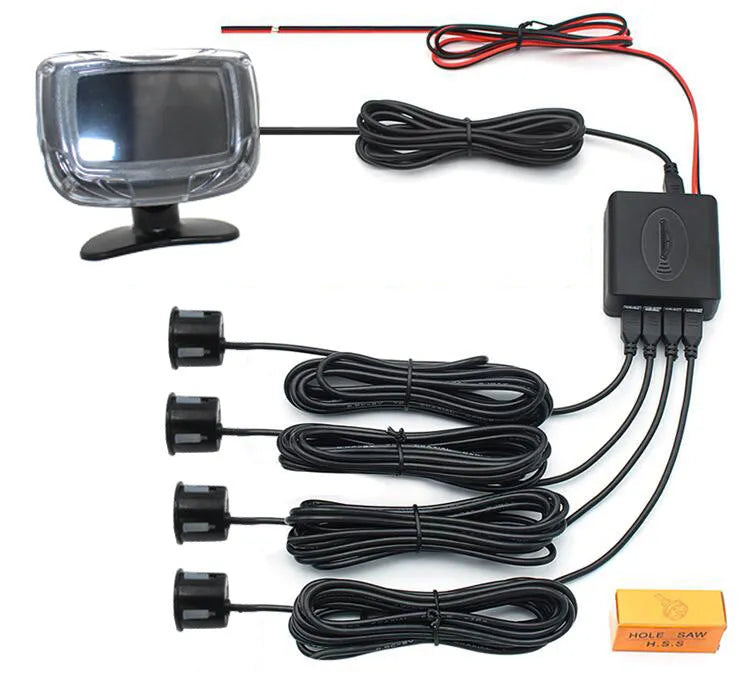

Designed for straightforward installation, the reversing sensor system includes all necessary components and employs technologies that prevent interference with existing vehicle electronics. The embedded probe installation method and multiple colour options allow for customisation to match different vehicle aesthetics.

Probe Configuration and Installation

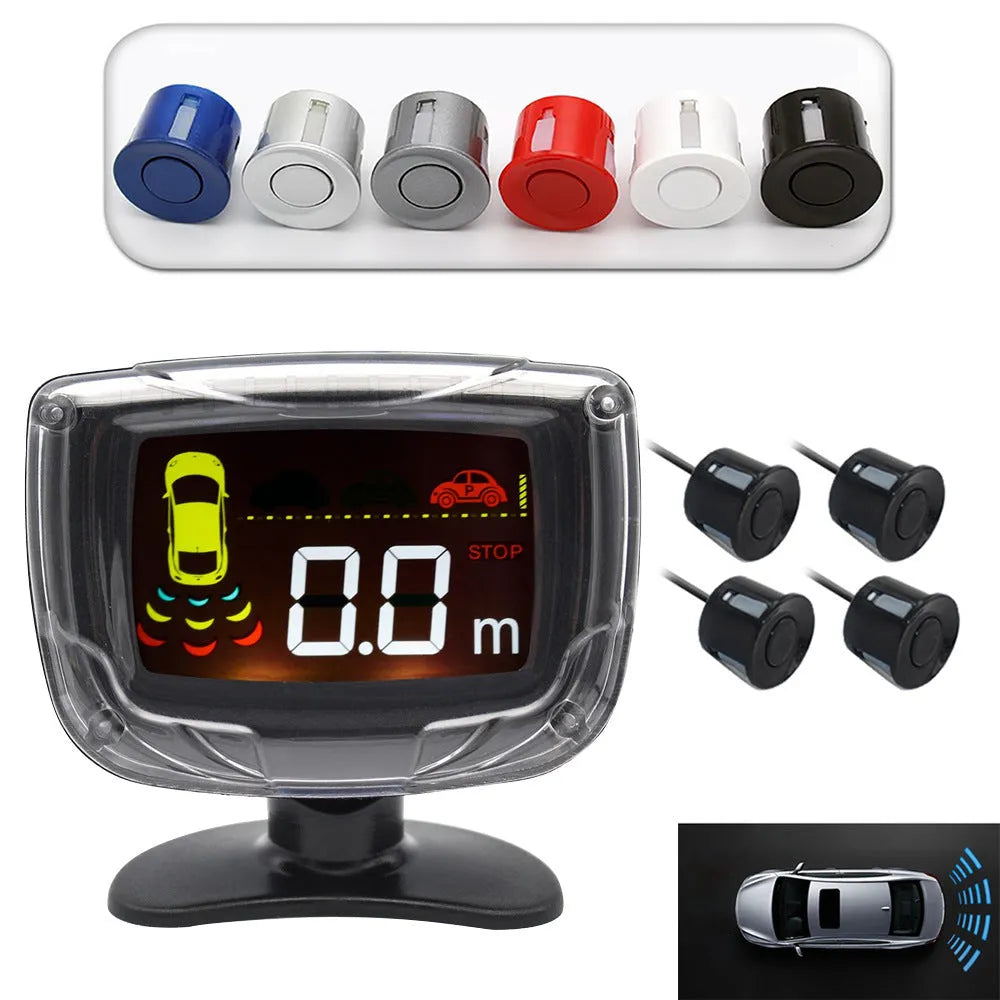

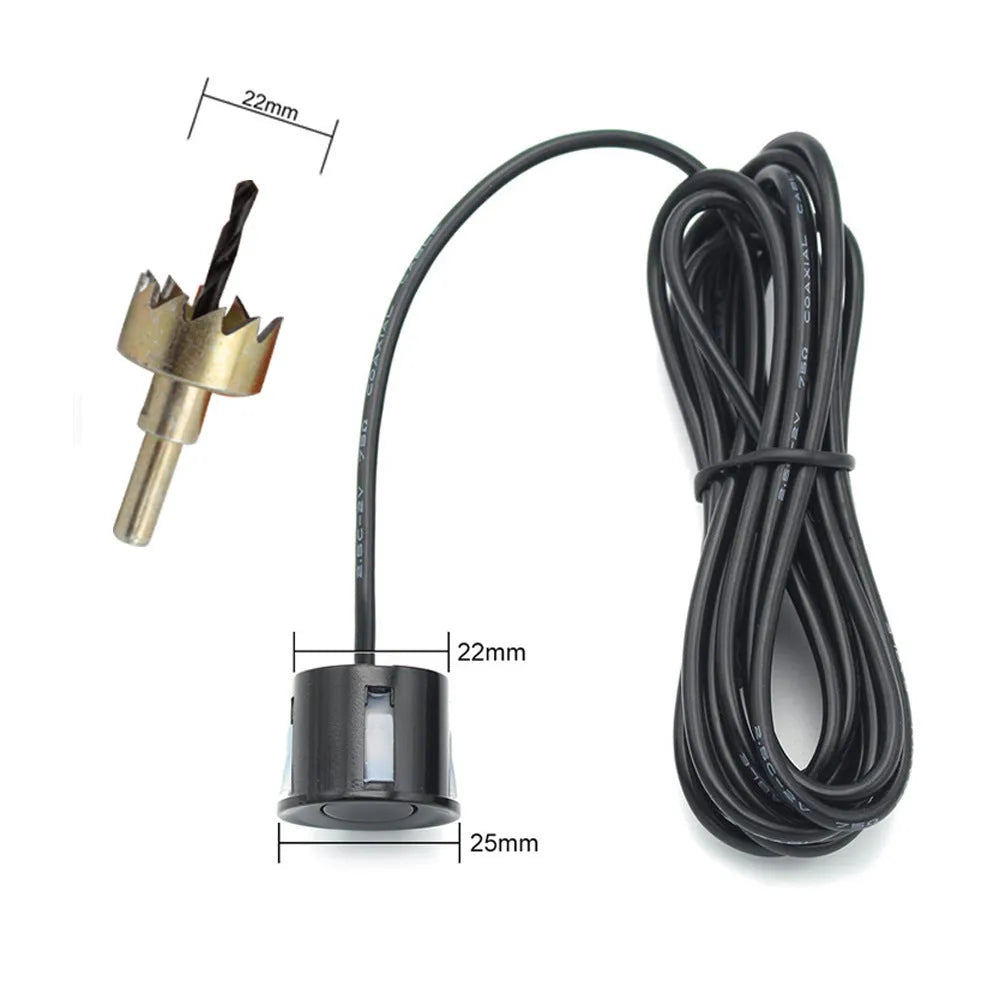

The system includes 4 ultrasonic probes that utilise embedded installation, with multiple colour configurations available to match different vehicle colours. Each probe is described as exquisite and compact, making installation convenient while maintaining a discreet appearance. The included hole opener facilitates proper mounting, and double-sided tape stickers provide additional mounting options for certain components.

System Intelligence and Safety Features

Dual CPUs enable rapid response to detected obstacles, while the probe self-check function monitors sensor status and provides alerts if any probe becomes damaged or malfunctions. This prevents potential reverse collisions that could occur from relying on compromised sensors. The anti-electromagnetic interference design incorporates patented technology and holds international certification, ensuring the system operates without affecting the vehicle's original electronic systems.

Display Design and Integration

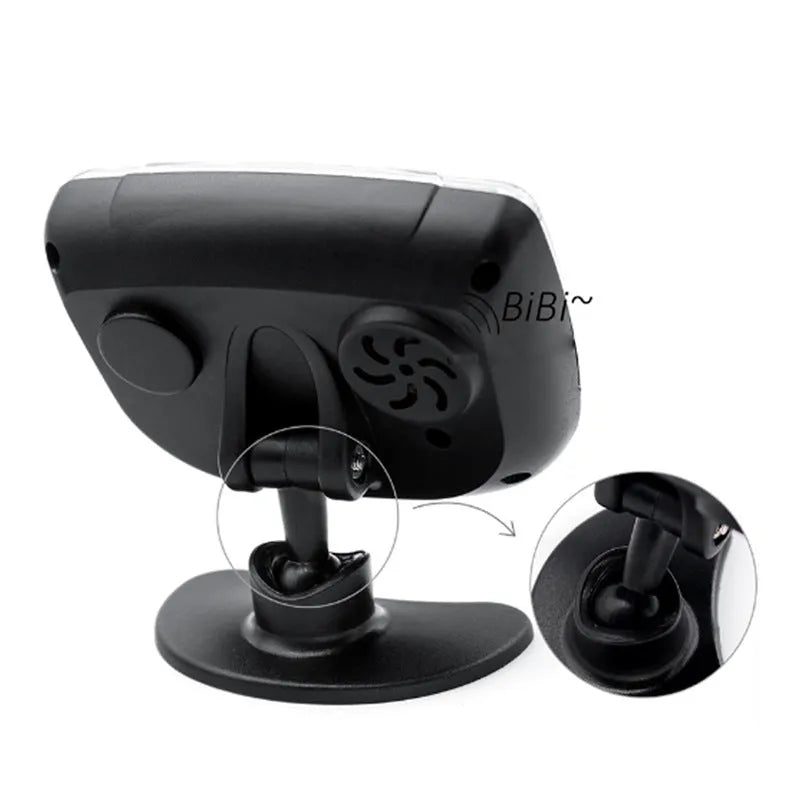

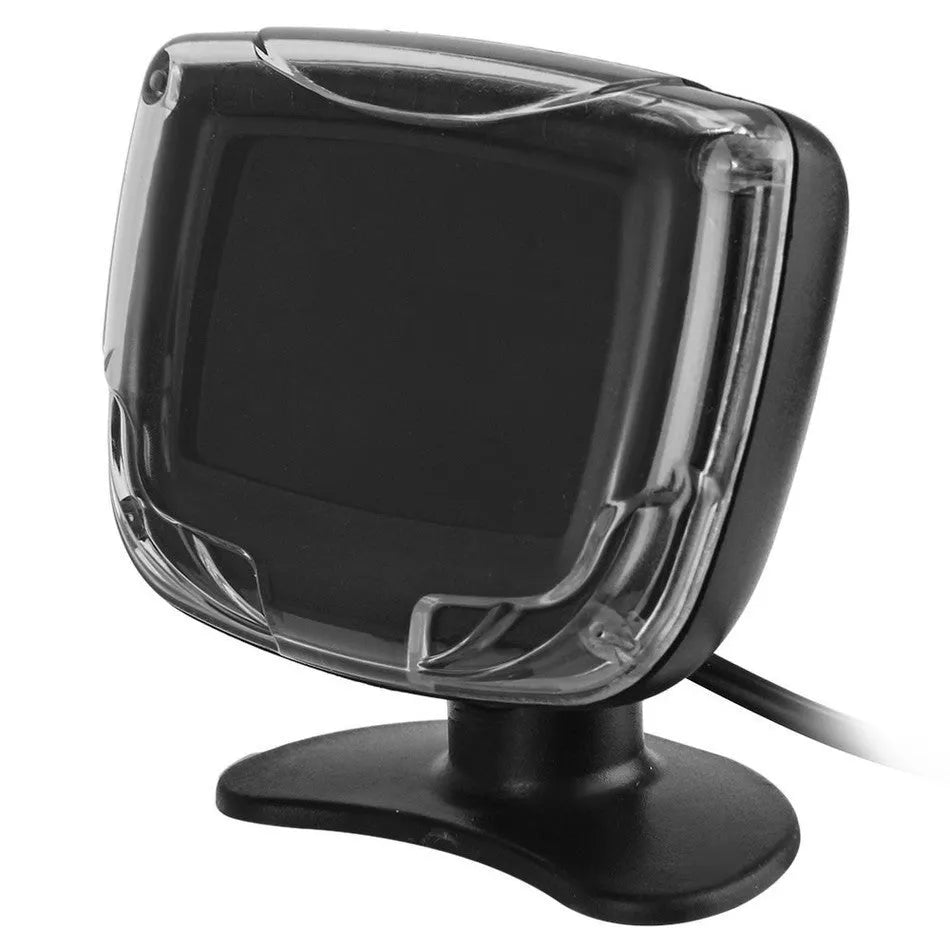

The subminiature LED digital display features fashionable, high-quality cow-like leather grain texture designed to complement dashboard styling. Its compact dimensions allow for flexible placement within the vehicle interior, and the display automatically shows distance information only when the vehicle is in reverse gear, avoiding unnecessary distraction during normal driving.

Practical Benefits and Usage Scenarios

This reversing sensor system addresses common parking challenges by providing precise distance information and obstacle detection that enhances driver confidence. Particularly useful in limited visibility conditions, the system helps prevent minor collisions that can occur during parking in crowded areas or tight spaces.

Everyday Parking Applications

During daily parking in supermarket car parks, residential driveways, or urban parking spaces, the system provides continuous feedback about rear obstacles that may be difficult to see in mirrors alone. The combination of visual and audible alerts allows drivers to focus on steering while receiving clear distance information, reducing the stress associated with parallel parking or reversing into tight spots.

Low-Light and Adverse Weather Use

Particarly valuable during early morning, evening, or night-time parking when visibility is reduced, the system functions independently of ambient light conditions. In rainy weather where rear windows may become obscured, the ultrasonic detection continues to operate effectively, providing an additional safety layer when traditional visibility aids are compromised.

Long-Term Value and Maintenance

The system requires minimal maintenance once properly installed, with no recurring costs or consumable components. Its robust construction designed for automotive environments ensures continued operation across temperature extremes, while the self-checking probe functionality alerts users to any maintenance needs before they compromise system performance.
