25A or 45A Illuminated Circuit Breaker Switch for Water Heaters and Air Conditioners

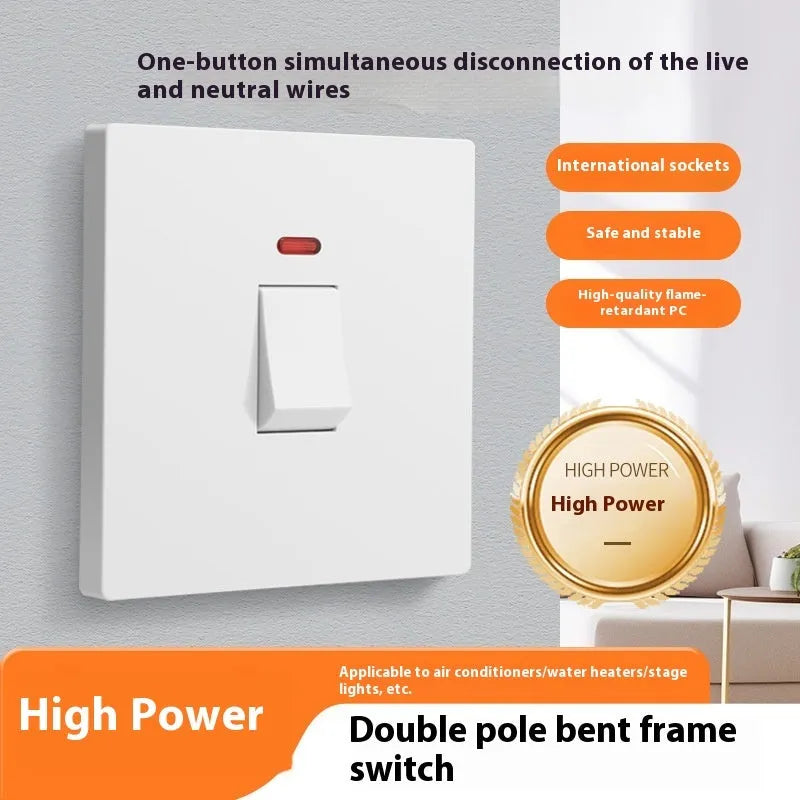

This curved rack circuit breaker switch is engineered for applications requiring high-current protection, specifically for powering and safeguarding major appliances like water heaters and air conditioners. It provides a double-break mechanism within a single unit and includes a practical illuminated panel, offering a combination of safety, durability, and clear operational feedback. The switch is available in two distinct ampere ratings and three different colour finishes, allowing for selection based on specific electrical load requirements and installation aesthetics.

Specifications and Build

This product belongs to the curved rack switch series and is designed as a high-power socket component.

Current Rating and Pole Configuration

The switch is offered in two distinct specification models. You can choose between a 25A rating or a higher 45A rating to match the specific current draw of your connected appliance, such as an air conditioner or electric water heater. Both models feature a 3-pole (3P) design, which is standard for safely switching live, neutral, and earth conductors in high-power circuits.

Design Features and Construction

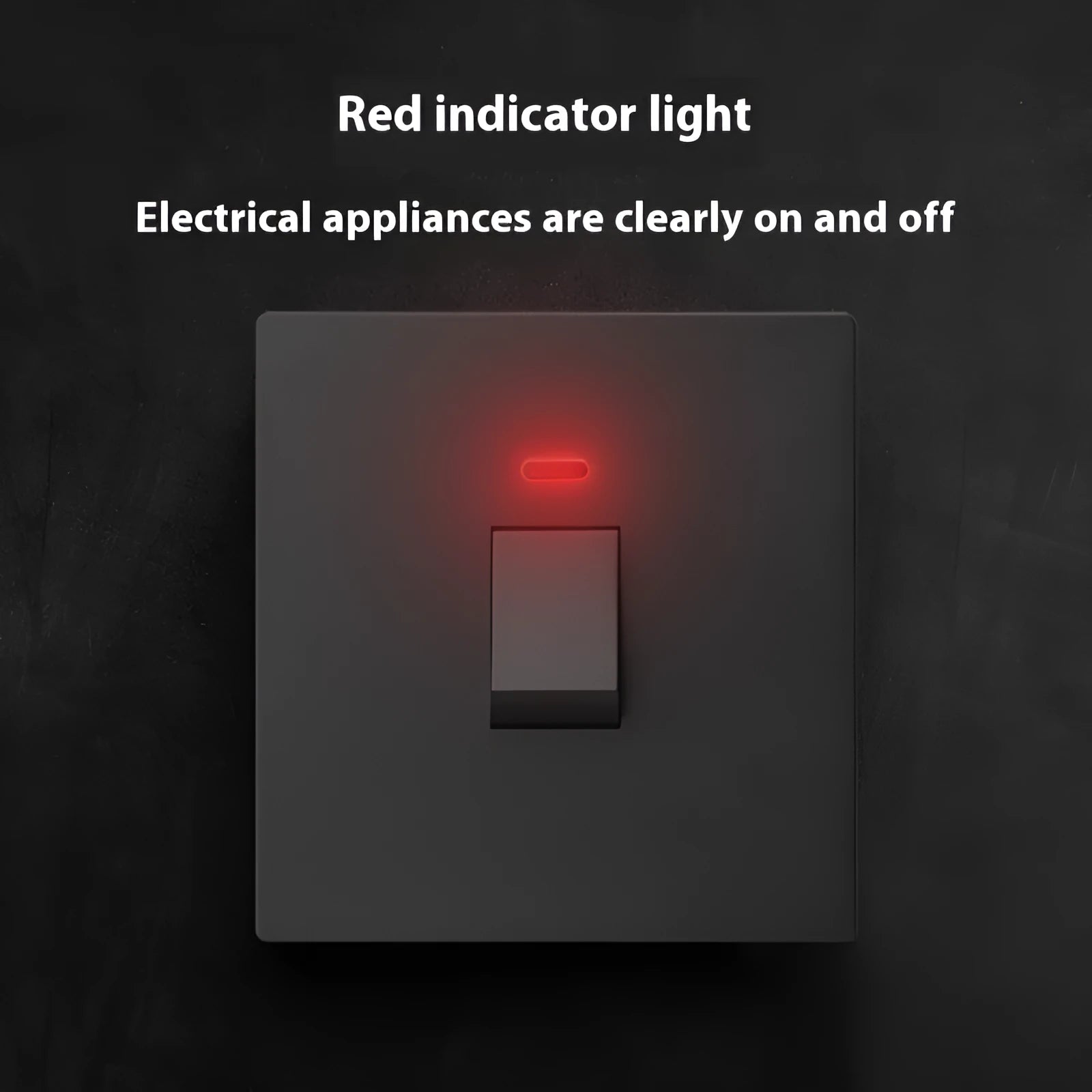

A key feature of this circuit breaker is its illuminated panel, which provides a clear visual signal of whether the switch is in the ‘on’ or ‘off’ position. This aids in operational safety and quick identification from a distance. The main housing of the switch is constructed from plastic, forming a durable enclosure for the internal electrical components.

Selection and Installation

This is a specialist electrical component intended for integration into switchboards or control panels for domestic or light commercial applications.

Colour Options and Finishes

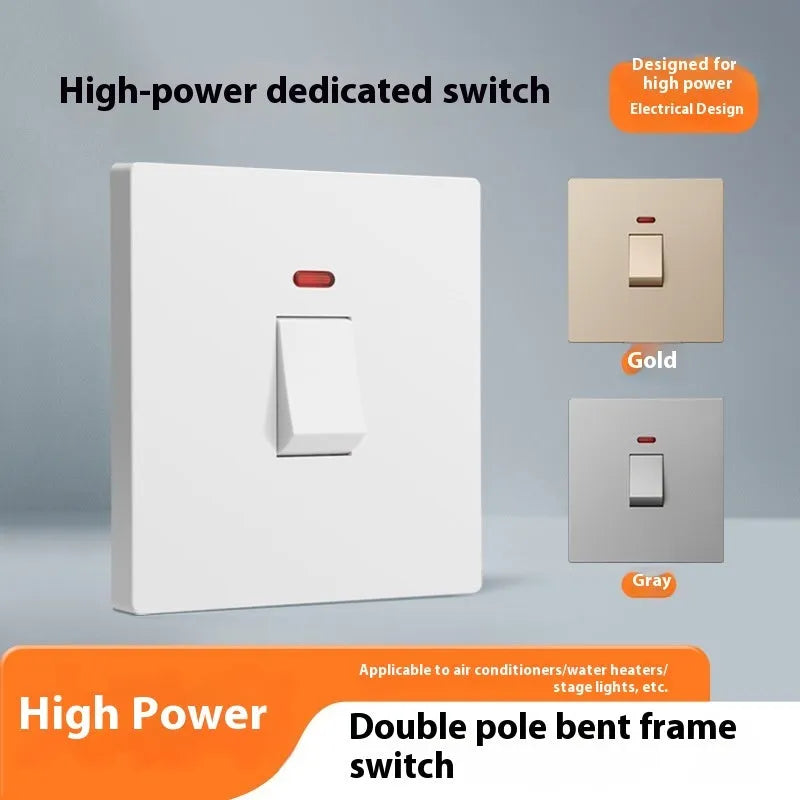

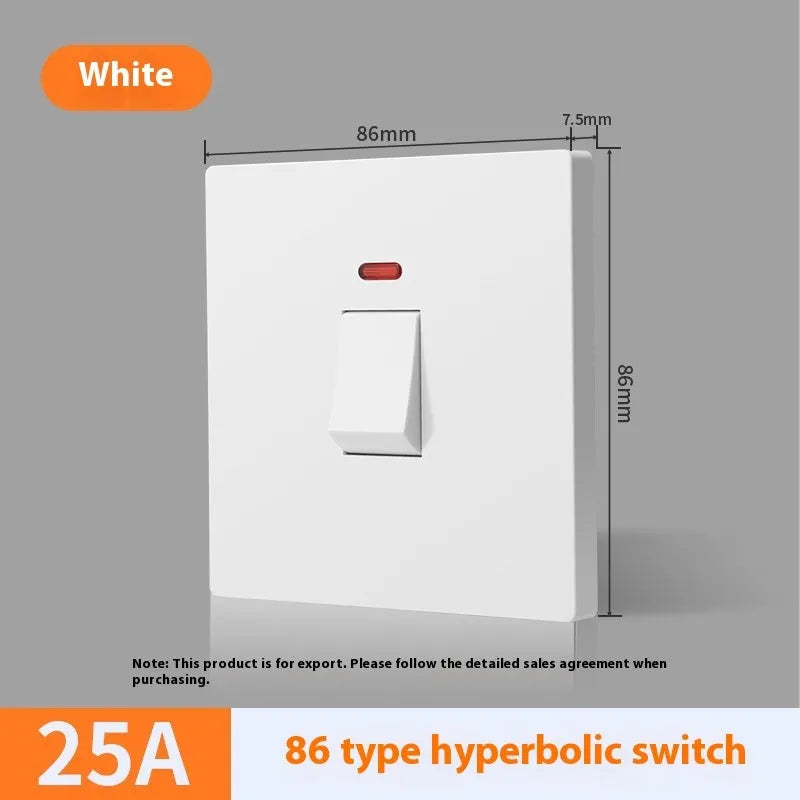

To suit different installation environments or panel designs, the switch is available in three distinct colour finishes: gold, grey, and white. This allows for functional matching with other components or aesthetic preference. The product weighs 128 grams, contributing to a substantial feel indicative of its robust internal construction.

Application and Professional Use

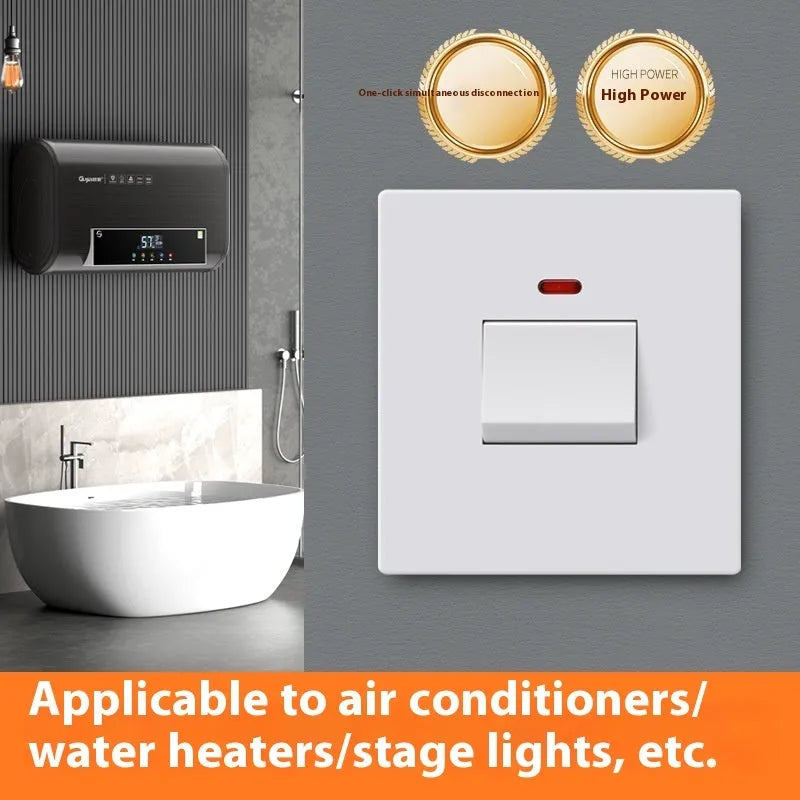

This switch is designed for the specific task of controlling and protecting high-current, single-phase or three-phase circuits. Its primary use cases include acting as the main isolator and protection device for electric storage water heaters and split-system air conditioning units. It should only be installed and wired by a qualified electrician in accordance with local wiring regulations.

Practical Benefits and Value

The product offers a focused solution for a specific electrical need, combining protection with user-friendly operation.

Operational Clarity and Safety

The illuminated panel directly addresses a practical need: clear, at-a-glance status confirmation. This reduces the risk of accidental contact or confusion when managing appliance power, enhancing overall safety for the user or maintenance personnel.

Why Choose This Circuit Breaker

This switch provides a dedicated, correctly rated component for demanding appliances, which is a safer and more reliable approach than adapting a standard switch. The choice between 25A and 45A models allows for precise matching to your appliance's specifications, ensuring the protection mechanism functions as intended. Its availability in multiple colours also offers a small but useful degree of customisation for the final installation.
