Aluminium Alloy Woodworking Perforation Locator for Precise 15-Degree Dowel Hole Alignment

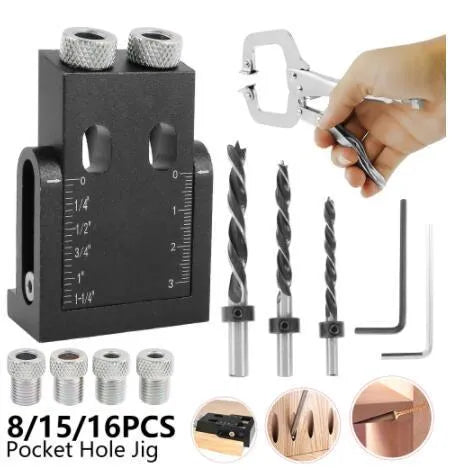

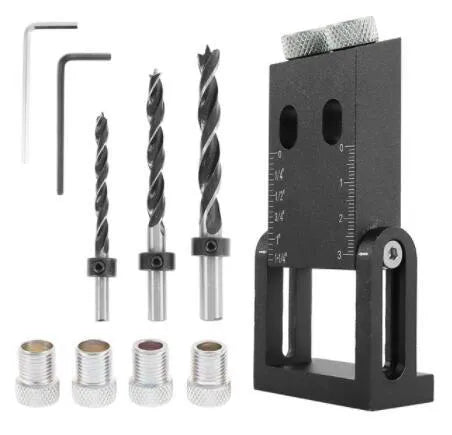

This perforation locator is a dedicated tool for woodworkers and DIY enthusiasts aiming for professional, flush results in board connection projects. It addresses the common frustration of misaligned dowel or connector holes, which can compromise joint strength and finish. The tool's core function is to guide your drill bit at a consistent 15-degree angle through pre-set sleeves, ensuring the holes in two adjoining boards match perfectly. Made from aluminium alloy, it balances durability with a manageable weight for handheld use. The package includes the essential components to get started: the locator tool itself, a set of five drill bits, and three sizing sleeves.

Features and Construction

The design focuses on delivering repeatable accuracy through its key physical components. The aluminium alloy body provides a stable platform, while the integrated angle guide and interchangeable sleeves handle the precision work. This section details the build and how the sizes translate to practical use.

Material and Build

The primary material is aluminium alloy, chosen for the main body of the locator tool. This offers a good balance; it is robust enough to maintain its shape and guide the drill without flexing, yet light enough for comfortable handling during extended use. The tool does not include motors or complex mechanisms, relying instead on this solid construction and the user's drill. The supplied drill bits are made from steel, designed to cut cleanly into wood when used with the guide.

Size and Practical Fit

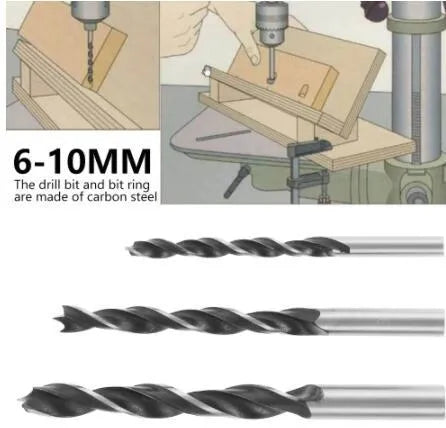

The tool's functionality is defined by its included accessories: the sleeves and drill bits. It comes with three specific sleeve diameters: 6mm, 8mm, and 10mm. These correspond to common dowel and connector pin sizes, allowing you to select the sleeve that matches your hardware precisely for a snug fit. The accompanying five drill bits cover a range from 6mm to 10mm, giving you the correct cutting tool for each sleeve size. The 15-degree angle is fixed into the tool's design, providing a consistent entry point for creating matched holes in two workpieces.

Uses and Placement

This tool is designed for a specific woodworking task: creating aligned holes for hidden joints. Its value is realised in projects where a clean, strong connection between boards is needed without visible fixings on the finished face. Understanding its intended applications helps in assessing its relevance to your workshop.

Event or Professional Use

For professional cabinetmakers, furniture restorers, or carpenters, consistency is key. This locator tool allows for the rapid, repeatable drilling of dowel holes at the correct angle, speeding up production on items like cabinet face frames, drawer boxes, or table aprons. It reduces setup time compared to marking and drilling each hole individually, and minimises material waste from misaligned joints. The range of sleeve sizes covers the most frequently used dowel dimensions in trade work.

Everyday Home Use

For the home DIYer tackling projects like building bookshelves, assembling flat-pack furniture repairs, or constructing simple tables, this tool demystifies making strong, hidden joints. It provides a clear physical guide that helps overcome the skill gap in freehand drilling, leading to more satisfying and stable results. It is particularly useful for anyone looking to move beyond basic butt joints and pocket holes to more traditional woodworking methods like dowel joinery.

Benefits and Buying Value

The advantages of this tool stem from its focused design and the concrete specifications of its components. It offers a solution to a defined problem, and its value is tied directly to the accuracy and simplicity it brings to that task.

Reuse and Low Maintenance

As a mechanical guide with no electronic parts, the tool requires minimal maintenance. Keeping the aluminium body clean from sawdust and ensuring the drill bits are sharp are the primary care needs. The sleeves and tool itself are designed for repeated use across multiple projects. The included set of drill bits and three sleeve sizes provides immediate utility for various jobs, meaning the single purchase supports ongoing use without needing extra parts for standard applications.

Why Choose This Product

This perforation locator stands out for its specific combination of a 15-degree guide angle and the included 6mm, 8mm, and 10mm sleeves. This matches common woodworking requirements precisely. The aluminium alloy construction differentiates it from potentially less durable plastic jigs. It provides a complete, ready-to-use kit for its intended purpose, removing the guesswork in selecting compatible drill bits. The tool's value is in delivering alignment accuracy through its physical design, offering a straightforward path to professional-looking joinery results.
